To replace your Chevy Equinox headlight bulb, you’ll access it through the wheel well rather than under the hood. First, turn off the engine and engage the parking brake. Remove the plastic push-pins and 10mm screw securing the wheel well liner, then pull it back. Unscrew the T20 Torx fastener, twist the access cover counterclockwise, disconnect the wiring harness, and rotate the bulb counterclockwise to remove it. Install the new bulb using gloves to avoid oil contamination, ensuring proper alignment before twisting clockwise. The following sections provide model-specific bulb types and detailed troubleshooting techniques.
Tools and Materials You’ll Need
Replacing a Chevy Equinox headlight bulb requires specific tools to access the bulb housing through either the wheel well or engine bay. You’ll need a T20 Torx screwdriver, 7mm socket with quarter-inch ratchet, and a trim tool set for removing fender liner clips. Safety precautions include wearing gloves to prevent skin oils from contaminating halogen bulbs and safety glasses for eye protection. A flashlight helps illuminate tight spaces behind the headlight assembly.
For replacement parts, obtain the correct bulb type—typically H11 for low beams—from brands like Sylvania XtraVision ($30-40). Consider evaluating bulbs based on light output measured in lumens to ensure optimal visibility during nighttime driving. When selecting replacement bulbs, you should also compare different bulb technologies such as halogen, LED, and HID conversions to determine which option best suits your needs and budget. Tool organization streamlines the process: arrange your socket set, replacement bulbs, electrical contact cleaner, and clean cloth within reach. Keep replacement clips handy for any damaged fasteners during liner removal. A No. 2 Phillips screwdriver is also useful for accessing certain mounting screws during the installation process.
Life time support, 1pcs packaged; Sinoparcel D5S HID bulbs with an integrated ballast, DIRECT REPLACEMENT for your stock D5S/DS5 bulb, without any modification (If there is any problem in the product,please contact us via Account Center,we will reply you within 24 hours)
Halogen Assembly Upgrade: Engineered exclusively for halogen headlight housings. Not compatible with HID/Xenon or other projector systems.
Identifying the Correct Bulb Type for Your Model Year
Before you purchase a replacement bulb, confirm the exact type your Equinox requires based on its model year and headlight system. For 2010-2015 models, you’ll need 9005 high beam and H11 low beam halogen bulbs. The 2016-2017 range uses the same halogen configuration, but HID-equipped trims require D5S bulbs. From 2018-2020, halogen systems switched to 9012 (HIR2) for both beams, while HID versions continued with D5S. By 2021, most models standardized on D5S HID bulbs. Earlier 2005-2009 Equinoxes used 9007 dual-filament bulbs. When selecting replacement bulbs, consider factors like light output measured in lumens, color temperature, durability, and ease of installation to ensure optimal performance. Comparing brightness levels and longevity across different bulb types will help you choose the most suitable option for your driving conditions. For fog light replacements across most model years, you’ll need H11 fog bulbs. Check your owner’s manual or consult Chevrolet’s official bulb chart to verify bulb compatibility, as model variations between trims and lighting packages markedly impact fitment requirements.
【160,000LM High-Output Illumination】 Equipped with upgraded CSP chips, the SEALIGHT S2S 9005/HB3 and H11/H8/H9/H16 bulbs generate 160,000LM of focused light with a 6500K cool white output, extending your driving visibility up to 1800FT for clearer nighttime road awareness.
The Forenner H11 9005 fog light combo Tail Light Covers packs 16 high-output chips, delivering up to 10× the brightness of standard halogens. Replace dim, yellow stock bulbs with a crisp 6500K cool white beam that cuts through fog and darkness with clarity. You'll see more details on the road, farther and wider, reducing eye strain and boosting confidence. Clear, bright light means safer, more comfortable driving in any low-light condition .
Perfect Lighting Performance - Designed to replicate the original halogen bulbs 1:1, our H11/9005 LED Bulbs fit seamlessly within your vehicle's headlight housing. The chip size and positioning closely match halogen filaments, ensuring optimum beam pattern, eliminating dark spots, and reducing glare for oncoming traffic
Preparing Your Vehicle for Access
Proper preparation takes just five minutes but prevents injury and makes the bulb replacement process greatly smoother. Begin by locating the hood release lever near your driver’s side kick panel or dashboard, then pull it to disengage the primary latch. Move to the front and release the secondary safety catch under the hood. Lift the hood fully and secure it with the prop rod or built-in struts.
Essential safety precautions include turning off the engine, removing keys from the ignition, and allowing at least 15 minutes for cooling if you’ve recently driven. Before you begin, identify your headlight bulb type—whether halogen, LED, or HID—as this will affect your replacement procedure. Turn your steering wheel fully right for driver-side access or left for passenger-side work. Engage the parking brake and shift into park before proceeding with bulb removal. For additional working space, consider jacking the vehicle up and removing the wheel on the side where you’ll be replacing the bulb.

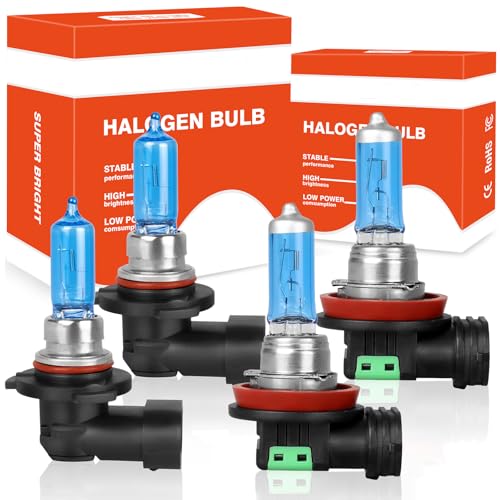

[Product Composition]: This product Fit for 2010-2018 Chevy Equinox, this 4-bulb set includes 2*HB3/9005 high beam bulbs, 2*H8/H9/H11 low beam bulbs,totally 4 Halogen headlight bulbs in the package.
【800% BRIGHTER BULBS】This product includes HB5/9007 can be used as high beam and low beam bulbs.Equipped with 24 high-luminous-efficiency LED CSP chips, the 6000K white light has strong penetrability and a longer illumination distance, enabling you to identify road conditions in advance and making night driving more reassuring.
Fit for 99% of vehicles - SYJIIP Halogen headlamp are close to the wattage of the stock halogen headlamp bulb, which can reduce the occurrence of CANBUS problems, avoid erroneous and flickering. As long as your stock light bulb model is the same as ours, then SYJIIP's light bulb will be suitable for your car.
Removing the Wheel Well Liner

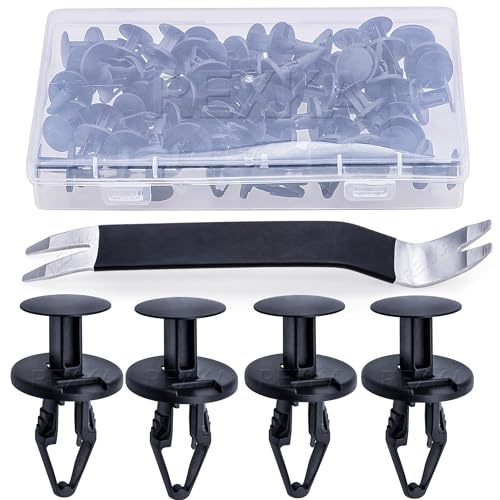

Although accessing the Chevy Equinox headlight assembly through the wheel well requires more effort than engine bay access, this method provides superior clearance and reduces the risk of damaging surrounding components. Begin fastener removal by inserting a flat blade screwdriver or trim tool beneath each plastic push-pin, prying it outward approximately halfway. Use the forked end of your trim tool to fully release each fastener without causing damage. Locate and remove the 10mm screw securing the liner’s upper edge using a socket ratchet with extension. Apply penetrating oil to rusted fasteners if necessary. Once you’ve confirmed all fasteners are removed, carefully pull the wheel well liner outward, maneuvering it gently to avoid cracking the plastic. Check for hidden clips near bumper areas before complete removal. Wear work gloves and eye protection throughout this process to protect yourself from sharp edges and accumulated debris.
🛡️ 𝐍𝐎 𝐒𝐂𝐑𝐀𝐓𝐂𝐇𝐄𝐒 𝐎𝐍 𝐃𝐀𝐒𝐇 𝐎𝐑 𝐏𝐀𝐈𝐍𝐓: The 4 plastic pry tools are molded nylon: made to lift a door panel, soft on dashboards, molding and painted edges. Use this auto trim removal tool kit in place of a screwdriver on interior trim, and as a molding removal tool on exterior trim, without the gouges metal leaves. A plastic trim removal tool set that protects the finish.
Compatible with: For Chevy Equinox 2018;For Equinox 2019;For Equinox 2020
FITMENT--Carbon fiber steering wheel trim compatible with 2007-2013 Chevy Silverado/Avalanche/GMC-Sierra & 2007-2014 Tahoe/Suburban/Escalade/GMC-Yukon & 2012-2017 Captiva.
Accessing the Headlight Bulb Assembly
With the wheel well liner pulled back, you’ll gain direct access to the headlight assembly by first positioning your steering wheel. Turn it fully right for the driver side or left for the passenger side—this maneuver exposes the access panel. Locate the black plastic cover secured by a single T20 Torx screw. Remove the screw, then twist the dome-shaped cover counterclockwise to release it. Pull straight out to reveal the bulb socket and wiring harness. These access methods provide direct entry to the bulb housing without removing the entire assembly. Inspect the rubber sealing gasket around the socket for damage before proceeding. Proper seal integrity prevents moisture ingress that causes fogging and premature bulb failure. Different bulb types offer varying levels of brightness and longevity, so understanding color temperature differences between halogen and LED options can help you select the best replacement for your needs. Consider upgrading to LED bulb options for improved brightness output and longevity once you’ve gained access to the socket. Check for secure connections after replacing the bulb to ensure proper electrical contact.
【500% Brighter – 30000LM 6000K Cool White】Upgrade your H11/H8/H9/H16 LED bulbs. 30,000LM per pair, 500% brighter than halogen. Fanless passive cooling (Copper Base + Aluminum Housing) delivers 0 dB quiet operation and no moving parts to break.
Fit For - These light bulbs combo compatible with Chevrolet Equinox high and low beams 2010 2011 2012 2013 2014 2015 2016 2017 2018. Our bulbs are suitable for Off-Road use only. If you need assistance or have any questions, please contact us via Amazon message for a free kit.
1:1 Beam for Optimal Visibility: Flawless lighting with L2S beam pattern. 9005 H11 light bulbs deliver a crystal-clear beam without any dark spots or glare, offering safe, comfortable driving, without dazzling oncoming traffic
Removing the Old Headlight Bulb
Once you’ve exposed the bulb housing, grasp the wiring harness connector firmly and locate the release tab—typically a small plastic clip on the top or side of the connector. Press the tab gently and slide the connector off the bulb socket. Inspect the connector for corrosion or damage before proceeding. Twist the bulb base counterclockwise approximately 45 degrees until it disengages from the socket, then pull it straight out without forcing. For bulb safety, hold only the plastic or metal base—never touch the glass surface, as skin oils cause premature failure. Check the bulb’s condition to confirm burnout or damage. Keep your workspace clean and note the bulb’s orientation for proper reinstallation. During removal, ensure the watertight gasket is not pinched or displaced from its proper position. Consider the brightness levels and color temperature of your replacement bulb to ensure optimal visibility and DOT compliance. Apply dielectric grease on connections to protect against corrosion and ensure reliable electrical contact. This inspection checklist guarantees you’re replacing the correct component and preparing for successful reassembly.
Installing the New Bulb Safely
Before handling the replacement bulb, put on nitrile or cotton gloves to create a barrier between your skin’s natural oils and the halogen glass envelope—direct contact creates hot spots that greatly reduce bulb lifespan. These safety precautions guarantee peak bulb performance. Grip the bulb by its plastic base only during the entire installation process.
Align the bulb’s mounting tabs with the socket slots, then insert straight with gentle pressure. Rotate clockwise approximately one-quarter turn until you feel a firm click, confirming secure engagement. Push the electrical connector onto the bulb’s terminal until the locking tab audibly snaps into position. Verify the connection by tugging lightly on the connector housing—never the wires. Before reinstalling any covers, clean the headlight housing to remove dust and debris that can reduce light output. Using a ratchet and Phillips screwdriver ensures you have the proper tools for removing any remaining components that may obstruct access. After installation, test your headlights to confirm proper beam alignment and prevent glare to other drivers. Proper bulb handling prevents filament damage and guarantees the new headlight functions reliably throughout its service life.
Reassembling the Access Panel and Wheel Well
After confirming the new bulb’s secure installation, you’ll reverse the disassembly process to restore the wheel well’s protective barriers. First, align the plastic dust caps correctly over the bulb housing and twist clockwise approximately a quarter turn until they’re firmly seated. Next, position the access panel back into place, ensuring it’s clear of any broken tabs. Reinstall push pins or clips by firmly pressing them into their original holes. Replace the T20 Torx or Phillips screw to secure the access panel cover, tightening just enough to hold it firmly. Reattach any wheel well liners using the appropriate fasteners, verifying they’re flush with adjacent body panels. Consider verifying that your replacement bulb meets DOT compliance standards to ensure legal road use. Finally, inspect all connections, confirm there’s no rubbing when turning the wheel, and remove any tools or debris from the area.
Testing Your New Headlight
With the wheel well fully reassembled, verify your new headlight bulb functions correctly by conducting a systematic test sequence. Turn the vehicle’s ignition to the “on” position and activate the headlight switch, checking both low beam and high beam operation. Perform testing in a low-light environment to clearly assess light output and beam pattern. If the bulb doesn’t illuminate, apply troubleshooting techniques: check fuses, relays, and wiring harness connections for corrosion or loose terminals. Use a multimeter in continuity mode to confirm the bulb’s filament integrity if malfunction occurs. A flickering headlight may indicate voltage drops or other electrical system irregularities that require further inspection beyond simple bulb replacement. Important safety considerations include ensuring the ignition is off before disconnecting any electrical components and handling bulbs with gloves to prevent oil contamination. For drivers seeking enhanced aesthetics beyond basic bulb replacement, consider exploring tint film or spray paint options to achieve a customized appearance. Replace bulbs immediately if damage appears during testing. Testing the headlight immediately after installation prevents reassembly of nonfunctional components and confirms the replacement was successful.
Maintenance Tips to Extend Bulb Life
Successfully installing and testing your new headlight bulb represents only half the equation—proper maintenance practices greatly extend bulb lifespan and enhance performance. Implement these bulb longevity strategies to maximize your investment. Always handle replacement bulbs with gloves to prevent skin oils from creating hotspots. Establish maintenance routines that include monthly inspections of electrical connectors for corrosion and confirm ground connections remain secure. Check your vehicle’s battery and alternator regularly to maintain stable voltage delivery. Clean headlight lenses quarterly to prevent excessive heat buildup and maintain peak light output. Professional cleaning techniques can also involve polishing and UV sealing to maintain lens clarity and prevent future fogging. Replace bulbs in pairs to guarantee balanced electrical load and illumination. Inspect headlight housing seals for cracks that allow moisture intrusion. Inspect the bulb socket for corrosion during each maintenance check to ensure proper electrical contact. Consider selecting LED or HID options that offer superior longevity and energy efficiency compared to standard halogen bulbs. Use OEM-specification bulbs and avoid frequent on/off cycling to reduce filament stress and premature failure.
