To replace your Ram ProMaster’s headlight bulb, you’ll need to disconnect the battery’s negative terminal, remove the three 10mm bolts securing the headlight assembly, and pull it outward to disengage the alignment pin. Disconnect the wire harness from the H7 bulb, rotate it counterclockwise to release the locking tabs, and install the new bulb without touching its glass surface. Reconnect the electrical connector, test functionality, and reinstall the assembly. The process varies between model years, particularly for 2023+ vehicles with different fastener configurations.
Tools and Materials Needed for Headlight Bulb Replacement
Before attempting headlight bulb replacement on your Ram ProMaster, you’ll need to gather the proper tools and materials to complete the job efficiently and safely. Your tool selection should include a T30 Torx driver for fixture bolts, 10mm socket wrench for fasteners, and flathead screwdriver or plastic trim remover for clips. You’ll also need needle-nose pliers for electrical connectors and a Phillips-head screwdriver for cover pieces.
For material sourcing, obtain the correct H7 bulbs compatible with your model year (2014-2023). Verify CANBUS compatibility for newer vehicles to prevent error codes. Wear mechanic gloves and safety glasses during the procedure to protect yourself from halogen bulb glass and debris. Prepare a small container for screws, confirm adequate lighting, and have dielectric grease available for connector protection. Consider evaluating bulbs based on brightness, longevity, and color temperature to select the best option for your needs. LED upgrade kits are available that require no glue or adapters, simplifying the installation process significantly.
Preparing Your Ram ProMaster for Bulb Replacement
With your tools and materials assembled, you’re ready to prepare your Ram ProMaster for safe bulb replacement. Begin by turning off the engine and allowing components to cool completely. Disconnect the battery’s negative terminal to eliminate electrical hazards. Engage the parking brake and position the vehicle on level ground in a well-lit area.
Release the hood latch from inside the cabin, then trigger the external safety catch. Secure the hood using the prop rod. Remove any plastic covers or metal brackets obstructing headlight access—these typically feature thumb screws or retention clips.
Before proceeding, verify your replacement bulb matches manufacturer specifications. Handle new bulbs with gloves to prevent oil contamination. The 2023 model design offers improved serviceability compared to previous ProMasters, making maintenance more straightforward. These vehicle safety and preparation tips guarantee efficient, hazard-free bulb replacement on your Ram ProMaster.

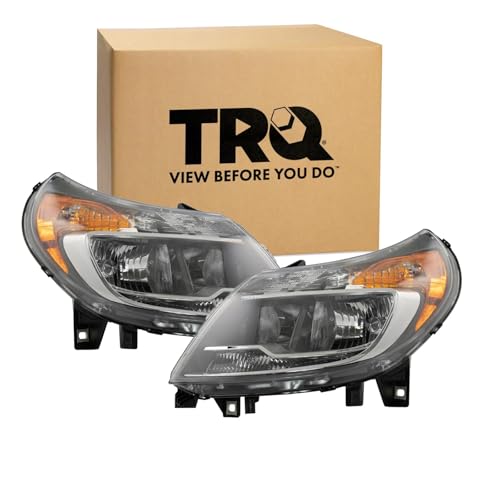

Accessing the Headlight Assembly and Bulb Housing
Once you’ve completed the preparation steps, locate the two protective covers surrounding the Ram ProMaster headlight assembly: the upper cover positioned above the assembly and the lower cover beneath it. Remove these covers using a Phillips screwdriver and 10mm socket, carefully releasing clips to avoid breaking plastic tabs. This approach guarantees proper headlight accessibility for subsequent steps.

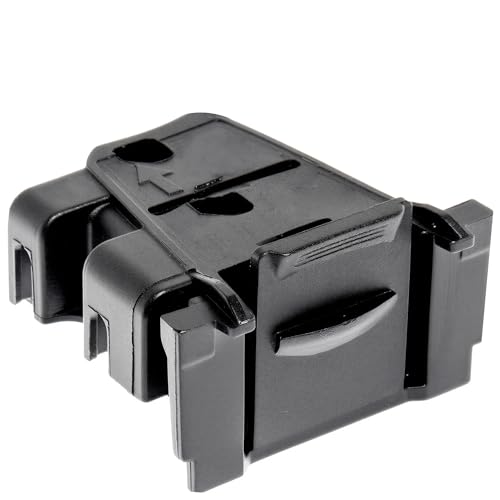

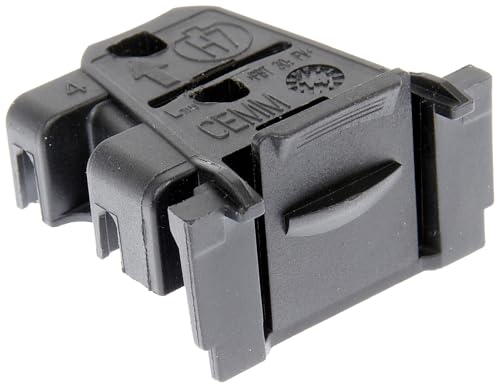

Next, unscrew the three 10mm bolts securing the headlight assembly—one positioned at the top and two around the edges. Gently pull the assembly straight outward to disengage the metal alignment pin from its body slot. You’ll notice the bulb housing mechanics become visible once the assembly is partially extracted. Push down the locking clips on the bulb housing covers, then twist or pop them off to access the separate low beam and high beam bulbs.
Removing the Old Headlight Bulb Safely
The removal process begins by locating the wire harness connector attached to the rear of the headlight bulb. Press the connector’s release tabs firmly and pull straight back to disconnect. Rotate the bulb counterclockwise approximately one-quarter turn to disengage the locking tabs from the housing. Gently withdraw the bulb assembly without yanking the wiring harness.
Key safety precautions include disconnecting the battery beforehand and wearing protective gloves to prevent glass contact. Common mistakes involve touching the bulb’s glass surface with bare hands, forcing stuck connectors, and applying excessive rotational pressure. If resistance occurs, verify you’re turning in the correct direction and that all retaining clips are fully released. Support the headlight housing during removal to prevent stress on mounting points. Before accessing the bulb, pull off the rubber cover that protects the rear of the headlight assembly.
Understanding Bulb Types and Compatibility

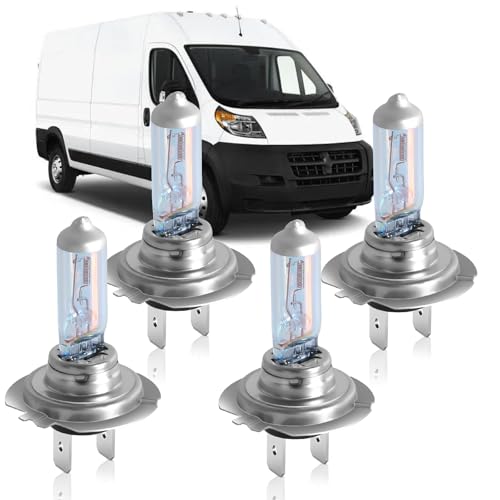

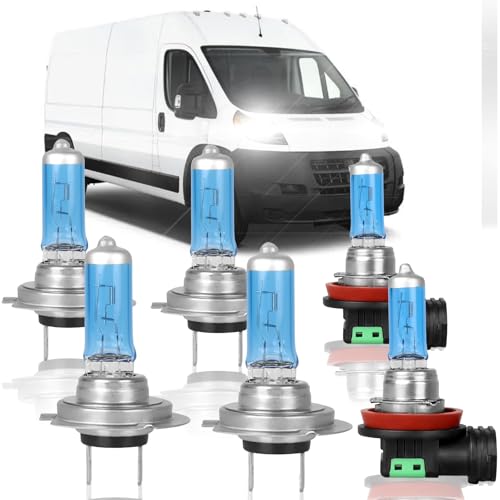

Selecting compatible replacement bulbs requires identifying your Ram ProMaster’s specific model year and trim configuration before purchasing. The 2023 ProMaster 3500 uses H11/H8/H9 and 9005/HB3 bulbs, while 2500 models (2014-2023) typically employ H11/H8/H9 or 9006/HB4 sizes. The 2022 ProMaster 1500 primarily requires H7 bulbs for headlights.
LED replacements offer superior bulb brightness, delivering 1400-2400 lumens compared to standard halogen output. However, electrical compatibility demands attention—LED bulbs operate at 14-21 watts and require anti-flicker modules to prevent CANBUS error signals. Verify your vehicle’s PWM control compatibility before installing LED upgrades.
You’ll find LED bulbs produce 6000K cool white light, while halogen bulbs emit warmer yellowish illumination. LED options aren’t compatible with OEM HID systems in ProMaster City models. For fog light replacements across 2014-2023 ProMaster 3500 models, H11 bulbs provide consistent compatibility.
Installing Your New Headlight Bulb
Begin by parking your Ram ProMaster on level ground and allowing the engine to cool for at least 30 minutes before starting the replacement procedure. Pop the hood and locate the headlight assembly. Remove retaining clips or screws using a Phillips screwdriver or 10mm socket wrench. Disconnect the electrical connector by pressing its release tab. Remove the old bulb by pulling it straight out, noting its orientation.
Following safety precautions, avoid touching the new bulb‘s glass surface—use gloves or a clean cloth for bulb cleaning to prevent oil deposits. Align the bulb’s tabs or prongs with the socket and push firmly until it seats securely. Reconnect the electrical connector until it clicks. Test the headlight before reassembly. Replace covers and securing hardware, ensuring proper alignment. For long-term headlight clarity and to prevent yellowing or hazing after replacement, consider applying a UV headlight sealant to maintain the appearance of your new bulb installation.
Reassembling the Headlight Assembly
After confirming your new headlight bulb functions correctly, you’re ready to restore the headlight assembly to its original position. Align the assembly tabs with the vehicle frame slots and insert mounting bolts—typically two silver bolts at the bottom and one darker bolt on top for Ram ProMaster models. Tighten clockwise until secure without overtightening plastic components.
Begin reassembling connectors by firmly attaching the main wiring harness until you hear an audible click. Inspect connector pins for corrosion before reconnection and verify no wires are pinched during installation. Replace spring clips securing the connectors.
Verify headlight alignment by checking that the housing sits flush with adjacent panels. Reinstall trim panels, securing all Phillips head screws and 10-millimeter bolts. Give the housing a gentle wiggle to confirm it’s properly attached to the vehicle. Test assembly stability before reconnecting the battery terminal.
Testing and Adjusting Your New Headlights
Once you’ve reconnected the battery terminal, position your Ram ProMaster on level ground facing a vertical wall or garage door at a distance of 25-30 feet (7.6-9.1 meters). Test both low and high beam functions to verify proper headlight performance. Check the projected light pattern for vertical and lateral misalignment.
Locate the vertical adjustment screw—typically accessed through the headlight housing’s top cover or elongated hole. Use a T15 Torx driver or 10mm socket to turn clockwise for raising the beam, counterclockwise for lowering. Target the low beam cutoff at approximately 44 inches (112 cm) from ground level.
For horizontal alignment techniques, access the lateral adjustment bolt using appropriate tools. Turn to shift the beam pattern left or right, ensuring symmetrical coverage from both headlights without creating glare for oncoming traffic. Handle the close-out panels carefully during the adjustment process to avoid breaking the plastic fasteners or hooks.
Best Practices for Headlight Maintenance
Maintaining your Ram ProMaster’s headlight system extends component lifespan and guarantees peak visibility during night operations. Implement headlight cleaning procedures monthly using industry-approved restoration kits rather than abrasive compounds. Hand-wash lenses to prevent oxidation buildup that reduces light output to 20% of original capacity while protecting adjacent trim components.
Monitor bulb longevity by tracking operational hours—halogen bulbs typically deliver 500 hours before replacement becomes necessary. Replace both bulbs simultaneously when dimming or flickering occurs to maintain balanced illumination patterns. Environmental temperature fluctuations accelerate bulb degradation, requiring earlier replacement intervals. Consider upgrading to LED headlight technology for extended lifespan and improved energy efficiency beyond traditional halogen alternatives.
Inspect headlight assemblies after impacts for lens cracks or mounting bracket damage. Utilize OEM repair kits when available to restore structural integrity without full assembly replacement. Verify alignment on level surfaces quarterly, ensuring both lamps remain within manufacturer-specified aim tolerances for best road coverage. Professional restoration services address clear headlight visibility concerns that studies have linked to reduced nighttime accidents.
Model Year Variations and LED Upgrade Options
Ram ProMaster headlight assemblies evolved considerably across model years, directly impacting bulb replacement procedures and upgrade compatibility. Pre-2023 models require 10mm hex bits and Phillips screwdrivers to remove multiple screws and clips accessing H7 bulbs. You’ll encounter metal brackets and plastic trim pieces during disassembly. 2023 and newer models simplified the process with single T30 torx bolts and twist-release mechanisms for complete headlight assembly removal.
Model year differences extend to LED benefits when upgrading from stock halogen H7 bulbs. LED replacements deliver higher lumens output, extended lifespan, and reduced power consumption. You’ll need to remove the entire headlight assembly for proper LED installation, as these upgrades include heat sinks and drivers. Plug-and-play LED kits maintain H7 base sizing, eliminating wiring modifications across all model years. Wearing gloves during bulb installation prevents oils from your skin from transferring to the bulb surface, which can cause premature failure and hot spots.
