Your RAV4’s headlight bulb type depends on its generation: 2006-2012 models use 9006 (HB4) low beams and 9005 (HB3) high beams, while 2013-2015 typically employ 9005 for both functions. The 2016-2018 generation switched to 9012 (HIR2) dual-beam bulbs, and 2019+ models feature integrated LED systems without user-replaceable bulbs. You’ll need to verify your specific model year and trim level for accurate specifications, as fog lights use H11 bulbs and turn signals require 7443 dual-filament sockets. Understanding generation-specific requirements guarantees proper compatibility and performance.
RAV4 Headlight Bulb Specifications by Generation
Because Toyota redesigned the RAV4’s lighting system across five generations, you’ll need to identify your model year before purchasing replacement bulbs. The RAV4 bulb evolution shows significant changes in headlight technology over time. First through third generations (1996-2012) maintained 9006/HB4 low beams and 9005/HB3 high beams consistently. Fourth generation RAV4 generation differences emerged in 2016 when Toyota switched to 9012/HIR2 dual-beam headlights. The most substantial change occurred in 2019’s fifth generation, which abandoned user-replaceable halogen headlights entirely for integrated LED systems. When upgrading to LED options, consider energy efficiency and lifespan advantages they offer over traditional halogen bulbs. You’ll find H11 fog lights remained standard across most generations, while auxiliary lighting like reverse lights and turn signals varied between 7440/7443 and 912/921 bulbs depending on your specific model year. Always confirm bulb sizes through the owner’s manual or dealership to ensure accuracy for your specific trim and assembly.
2006-2012 RAV4 Headlight and Fog Light Bulbs
The 1996-2012 RAV4 generations maintain consistent headlight bulb specifications across all model years, simplifying the replacement process for owners. You’ll need #9006 (HB4) bulbs for low beams and #9005 (HB3) 12V 60W bulbs for high beams. Access both by opening your hood and reaching behind the headlight assembly—no tools required. For low beams, rotate the black plastic base counterclockwise a quarter turn, then pull straight out. High beams require pressing the release tab on the power connector before extraction. During installation, confirm proper headlight orientation by rotating new bulbs clockwise until secured. Avoid touching the glass portion; use alcohol if contamination occurs. Consider LED and HID conversion options for improved visibility and longevity compared to standard halogen bulbs. Proper beam pattern quality ensures optimal lighting performance and reduces glare on the road. For fog light installation, you’ll need #7443 clear halogen bulbs secured with a clockwise quarter turn. The front turn signal bulb is located at the outer corner of the headlight assembly and also uses a #7443 clear bulb. Test all bulbs after completing the replacement procedure.
2013-2015 RAV4 Lighting Bulb Requirements
When replacing bulbs on 2013-2015 RAV4 models, you’ll encounter different bulb specifications than the previous generation. Your headlights typically use 9005 (HB3) bulbs for low-beam and 9005 or 9006 for high-beam, depending on trim—inspect your socket before purchase. Front fog lights require H11 bulbs, while some DRL circuits use H16. For RAV4 lighting maintenance, rear functions include 7443 dual-filament bulbs for tail/brake circuits and T15 (921/922) for reverse lamps. Interior and auxiliary positions use 168/194 for license plates and markers, plus 28mm festoons (DE3022/DE3175) for dome lights. Always replace headlight bulbs in pairs to maintain consistent output. Verify bulb type by removing the existing unit, as parts lists vary by submodel and market. Leading brands like Philips and Sylvania offer reliable replacement options across these various positions. When upgrading to premium options, consider DOT regulations and legal compliance to ensure your chosen bulbs meet safety standards. LED upgrade kits are available with plug and play installation for most exterior positions, eliminating the need for additional resistors or drivers.
2016-2018 RAV4 Dual-Beam Headlight System

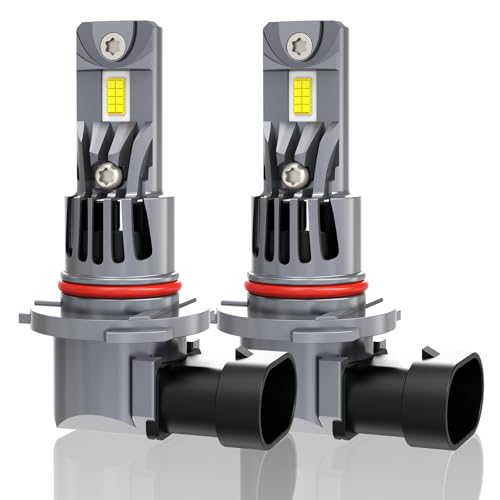

Starting in 2016, Toyota consolidated the low- and high-beam functions into a single dual-beam bulb for many RAV4 configurations, replacing the separate bulb arrangement used in earlier fourth-generation models. Your 2016–2018 RAV4 uses a 9012 (HIR2) halogen dual-beam bulb, accessed from the rear of the headlamp housing after removing the dust cover. Dual beam benefits include simplified headlight maintenance tips—you’ll replace only one bulb per side instead of two separate units. Factory 9012 bulbs operate at approximately 60W/12V. Aftermarket LED conversions claim higher lumen output and cooler color temperatures (6000–6500K), but require proper chip placement to maintain beam cutoff and avoid glare. Some kits need CANbus decoders to prevent dashboard errors. Popular brands like Sylvania and Philips offer LED conversion options that balance improved brightness with DOT compliance for street use. LED matrix headlights from premium manufacturers demonstrate how intelligent light distribution systems can optimize visibility while preventing oncoming glare. Always verify plug orientation and confirm adequate clearance for heat sinks or cooling fans during installation. The bulb size is consistent across all trims, including Adventure, LE, Limited, Platinum, SE, and XLE models.
2022-2025 RAV4 Turn Signal and Backup Bulbs
For 2022–2025 RAV4 models, Toyota standardized both front and rear turn signals on the 7443 dual-filament bulb socket, streamlining replacement procedures across all trim levels. Understanding turn signal types helps you select appropriate upgrades—the factory halogen produces approximately 400 lumens, while LED alternatives like the T3 series deliver 2000LM per bulb at 24W with amber 3000K output.
Front access requires opening your hood and rotating the socket counterclockwise before pulling the bulb outward. Rear replacement involves removing the trunk-side plastic cover, extracting two 10mm screws, and pushing the tail light assembly from the quarter panel side to release it. LED upgrades feature built-in CAN-bus decoders preventing hyper-flash and error codes. The non-polarity plug-and-play design guarantees compatibility without modifications, while 16 high-light flip chips reduce glare through softer bulb brightness distribution.
All LED replacements include a 1-year hassle-free warranty covering manufacturer defects, along with 45 days free return eligibility for customers seeking money-back guarantees.
Common Bulb Types Used Across RAV4 Models
Beyond turn signals and exterior indicators, Toyota engineers selected a core group of halogen bulb types to power RAV4 lighting systems across multiple generations. You’ll find 9006 (HB4) and 9005 (HB3) bulbs dominating 2006-2012 low and high beams respectively, while the 9012 dual-beam configuration serves 2016-2018 models. These specifications directly impact headlight brightness ratings—9005 bulbs typically deliver 1,700 lumens versus 9006’s 1,000 lumens. When comparing bulb options, LED alternatives offer superior energy efficiency compared to traditional halogen types while potentially extending overall lifespan. For fog lighting, H11 bulbs remain standard across both generations, offering consistent bulb lifespan comparisons of 400-500 hours. LED bulbs also provide improved visibility for safer nighttime driving compared to standard halogen options. The 194 (168) size handles interior dome lights, license plate illumination, and tail light accents, while 7440 (7443) powers rear turn signals and outer tail lamps. Understanding these recurring types simplifies maintenance planning and guarantees you’re selecting manufacturer-specified replacements. Most in-stock bulb orders ship within 24 hours, reaching customers in approximately a week with tracking numbers emailed upon shipment.
Halogen to LED Upgrade Options
Recommended products include Sylvania SilverStar Ultra for whiter illumination, Alla Lighting HB4 9006 with adjustable beam control, and Boslla H11 fog light replacements. Replace bulbs in pairs to maintain even brightness and color temperature. Pre-2019 base trims with replaceable halogen housings accept LED retrofits most easily. Fog light positions using H11 halogens provide the simplest upgrade entry point before converting headlight assemblies. When upgrading to LED options, consider the light output measured in lumens to ensure adequate brightness for nighttime driving safety. Upgrading from factory bulbs offers improved visibility and enhanced aesthetics for your vehicle. For 2019-2021 models, the factory LED headlights require dealer service and cannot be upgraded by owners.
Compatibility and Installation Considerations
When selecting replacement bulbs for your RAV4, you must first identify your vehicle’s exact model year and trim level, as headlight configurations vary considerably across generations. The 2016-2018 models utilize a dual-beam 9012 bulb design, requiring only one bulb per side, while 2006-2012 versions need separate 9006 low beam and 9005 high beam bulbs. Factory LED headlights in certain trims cannot be upgraded without dealer service.
For installation tips, confirm wattage specifications before proceeding: 24W for 7443 turn signals and 13W for 921 backup lights. Can-Bus decoders prevent error codes in 2022-2025 models. Aviation 6063 aluminum housing in LED replacements guarantees proper thermal management, directly affecting bulb longevity. The built-in Canbus technology in certain LED bulb kits is designed to minimize error codes and works with 98% of vehicles. Some RAV4 owners also benefit from using in-car menu controls to adjust lighting settings for improved visibility. To maintain clarity and prevent headlight haze over time, consider applying a protective coating or wax after installation. Always consult trim-specific charts, particularly for the 2012 EV’s non-upgradeable LED rear markers.
Legal Requirements for Headlight Replacements
After confirming your RAV4’s bulb specifications and completing the physical installation, you must verify that your replacement headlights meet federal and state legal standards. Check for the DOT mark on bulb packaging—this bulb certification guarantees compliance with Federal Motor Vehicle Safety Standard 108, governing beam patterns and intensity. Non-certified bulbs risk fines up to $5,000 per violation.
State regulations vary greatly. California prohibits bulbs exceeding 3,200K color temperature, while Texas caps output at 6,000 lumens without certification. New York bans aftermarket modifications entirely. Verify your state’s requirements through local DMV resources.
Confirm proper beam alignment—headlights must aim no more than 4 degrees upward from horizontal. Misalignment constitutes an equipment violation with minimum $100 fines. During annual inspections in 37 states, non-compliant bulbs trigger immediate failure. When upgrading to LED bulbs, consider using adapter compatibility solutions to ensure seamless integration with your vehicle’s electrical system. LED technology offers improved visibility and energy efficiency compared to traditional halogen bulbs, but only when properly installed and aligned. Before purchasing replacement bulbs, call your local AutoZone to verify the correct model number for your specific RAV4 trim and year at no charge.
