To replace your Jeep Cherokee headlight bulb, first identify the correct bulb type for your model year using your owner’s manual. Park on a flat surface, turn off the engine, and let the headlights cool for 10 minutes. Access the assembly through the wheel well by removing the inner fender liner clips. Disconnect the wiring harness, turn the old bulb counterclockwise to remove it, then install the new bulb by turning clockwise until it clicks. Reconnect the harness and test both low and high beams to verify proper function before reassembling the panels.
Gather Your Tools and Materials
Before starting this repair, collect all necessary equipment to avoid interrupting your work midway through the bulb replacement process. Proper tool organization guarantees you’ll have a #2 Phillips screwdriver, flathead screwdriver, 8mm socket with ratchet, and 7mm hex bolt tool within reach. Safety precautions require wearing gloves to prevent skin oils from contaminating the new bulb and a mask to protect against dust particles. Include painter’s masking tape to protect surrounding surfaces, silicon dielectric grease for electrical connections, and clean rags for wiping components. Keep a flashlight nearby for visibility in tight engine compartment spaces. Optional items like plastic fastener removers and hose clamp looseners may prove necessary depending on your Cherokee’s configuration and accessibility challenges. Having a 1/4 drive ratchet ready will help with disassembly tasks during the replacement procedure.
KIT CONTENTS - Each headlight restoration kit includes (8) Step 1 Oxidation Removing Wipes, (1) Step 2 Sanding Kit, and (2) Step 3 Ceramic Coating Wipes.
Waterproof female socket electric connector Compatible with Jeep Grand Cherokee 2011-2021 3.0L/3.6L/5.7L/6.4L low beam lamps (Headlights-Lower beam. Front). 2-PIN. Includes copper insulated wires measuring 11.8 inches (30 cm) in length.

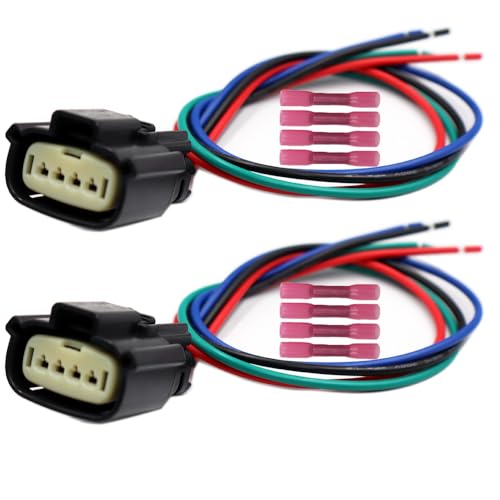

Fitment: Waterproof female socket electric connector for Jeep Grand Cherokee 2014-2021 3.0L/3.6L/5.7L/6.4Lheadlamps (Front). 4-PIN. Includes copper insulated wires measuring 11.8 inches (30 cm) in length
Identify the Correct Bulb Type for Your Model
Determining your Cherokee’s exact bulb type requires checking both the model year and factory headlight configuration, as Jeep installed different systems across trim levels and production years. For 2014-2015 models, you’ll find either D3S (HID) or 9012/HIR2 (halogen) bulbs, while 2016-2019 models use D3S or 9005/HB3. The 2020-2023 range expanded bulb compatibility to include H11/H8/H9, 9005/HB3, 9012/HIR2, and D3S/D3R variants. Locate your owner’s manual to confirm model specifications, as halogen and HID configurations differ considerably by trim package. Open your hood and examine the existing bulb’s base—you’ll see the bulb number stamped on the plastic connector. Consider the color temperature and beam pattern of your replacement bulb, as these factors significantly affect both visibility and safety during night driving. This verification step prevents purchasing incorrect bulbs and guarantees proper fitment during installation. These specifications apply only to vehicles with original factory assemblies, as aftermarket headlight housings may require different bulb sizes entirely.
Lights Dim Over Time, Replace In Pairs: Your lights are a pair, one is never turned on without the other. If one bulb burns out, the other isn't far behind. Replace your H11...
Prepare Your Vehicle and Work Area
Once you’ve confirmed your Cherokee’s bulb type, position your vehicle on a flat, well-lit surface and engage the parking brake fully. Turn off the engine completely and allow the headlights to cool for at least 10 minutes to prevent burns. Vehicle safety requires placing wheel chocks on the opposite wheels before beginning work.
Gather your essential tools: flathead screwdriver, 8mm socket with ratchet, lantern flashlight, and safety glasses. Work area organization starts by setting up your flashlight to illuminate the engine bay and arranging a clean surface for removed components. Keep fasteners sorted to prevent loss during reassembly.
Wear gloves to protect against heat and sharp edges. Turn the steering wheel fully to improve access to the headlight assembly if needed. Disconnect the battery if you’re concerned about electrical risks.
Access the Headlight Assembly
Accessing the headlight assembly requires removing the wheel well panel on the side you’re servicing. Turn your steering wheel fully right for passenger side access or fully left for driver side access. This exposes the space behind the wheel well panels where you’ll find 8mm screws above the wheel area. Use an 8mm socket and ratchet to remove these fasteners. Bend back the soft wheel well panel material and pull the small opening to untuck the panel. A flathead screwdriver helps pry back the inner fender liner. Remove four clips and two twist screws underneath. Pulling back the liner improves your reach to the headlight cover without disturbing headlight alignment. Proper access guarantees you won’t damage components, protecting bulb longevity during replacement. Before beginning this process, ensure the vehicle is parked on a level surface with the engine turned off. Take care not to touch the glass of the bulbs to avoid damage during the replacement process, as touching the glass can compromise bulb performance and lifespan.
SMALL BUT ENOUGH FOR YOU - Mini socket set Includes 10 Cr-V 1/4" Metric Sockets 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm on 10 collecting holders, each socket is labeled with the size which makes organizing easy. 1pcs 1/4" 24-teeth ratchet handle; 1pcs 4'' Extension bars.
The Set Combination: This 21 pcs 3/8 Inch Ratchet Socket Wrench Set includes 6mm, 7mm, 8mm, 9mm,10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm,19mm, 20mm, 21mm, 22mm, 23mm, 24mm;3/8”ratchet wrench*1; 5.94in extension bar*1
Precise Size: This 1/4" drive socket set includes 8mm 6-point sockets in two total lengths: 25mm (1-inch) and 50mm (2-inch). The dual-length design fits both shallow and deep fasteners, making it versatile for various repair and installation tasks.
Remove the Old Headlight Bulb
Locate the round plastic dust cap covering the back of the headlight assembly after you’ve pulled back the wheel well liner. Twist the cap counterclockwise to remove it, pinching any tabs if present. Inspect the rubber seal for moisture damage. Next, reach into the assembly and press the harness clip, pulling it straight out from the bulb base. Use a flathead screwdriver if it’s tight, but note the orientation for reassembly.
Turn the bulb counterclockwise to loosen it from the housing. If it’s stuck, wiggle it gently with a screwdriver, avoiding the gray plastic retainer. Pull the bulb straight out carefully. Safety precautions include never touching the glass surface, as oils damage different bulb types. Verify the bulb has cooled completely before handling to prevent burns. To maintain your headlights after replacement, consider applying a UV sealant to protect against oxidation and yellowing. If you encounter damage to the connector or wiring during this process, know that professional connector repairs typically range from $100 to $300, making DIY solutions more economical for those with basic tools.
[Exact Fit for your car]: Our lights provide you with a perfect 1:15 Compatible for jeep grand cherokee 2017-2022. Enjoy bright and clear lighting with our lights to enhance your driving experience.
Fit For - These light bulbs combo compatible with Jeep Grand Cherokee high low beam and fog lights halogen bulbs 2017 2018 2019 2020 2021 2022; compatible with Jeep Grand Cherokee 2022 Halogen Quad Headlamps, Body Color Headlamp Bezels; 4 Door, high and low beams. Our bulbs are suitable for Off-Road use only. If you need assistance or have any questions, please contact us via Amazon message for a free kit.
Material & Build Quality: High-quality aluminum alloy housing with durable UV-resistant polycarbonate lens. Built for long-term reliability with strong impact resistance and stable performance across various driving conditions.
Install the New Headlight Bulb
Before handling the replacement bulb, put on clean gloves to prevent skin oils from contaminating the glass surface. Align the bulb’s tabs with the corresponding slots in the housing—proper bulb orientation guarantees it fits only one way, with the guide positioned on the bottom. Insert the bulb carefully into the socket, avoiding contact with surrounding components. Turn clockwise until you hear an audible click, confirming the lock mechanism has engaged.
Follow installation precautions by verifying cables tuck inside the housing before securing the plastic cover. Turn the cover clockwise to fasten it completely. Ensure the moisture-absorbing packet remains in place when reinstalling the headlight cover. LED upgrades can enhance brightness and color temperature for improved visibility. The entire process can typically be completed in under 10 minutes using simple hand tools or even by hand. Test headlight functionality immediately by activating the lights. If the bulb doesn’t illuminate, flip the connector orientation. Once confirmed operational, reverse the removal steps to complete reassembly.
Safer Night Driving: Torchbeam d3s bulbs made with German xenon gas. Replacement OEM Part Number: 42302C1, 42302(WX/XV), 42403(C1), 66340, 66340CBH, 66340CBI, ect.
🚗【Compatible with Jeep Cherokee 2014 2015 Halogen Headlight Bulbs】Before making your purchase, it's crucial to ensure that these halogen headlight bulbs are compatible with your Jeep Cherokee 2014 2015. The combo includes 9012 high low beam bulbs, totaling 2 in the package.
10X Exceptional Brightness: 9012 bulb featuring 16 advanced chips per bulb and an incredible 45,000LM brightness per set. Powered by the latest technology, these headlights efficient illumination, ensuring optimal visibility and safety during nighttime drives
Reconnect the Wiring Harness
Grasp the wiring harness connector and position it near the bulb socket, ensuring the locking tab faces upward. Align the connector pins precisely with the headlight plug, verifying harness compatibility for your Cherokee XJ’s H4 or 9003 configuration. Push firmly until you hear a distinct click, confirming full engagement. Tug gently to test wiring integrity and secure seating.
Inspect the connection for gaps or misalignment that could cause electrical failure. For 97+ models with factory fog lights, verify the blue high beam wire splice remains intact. Route excess wiring away from heat sources and moving components, securing with zip-ties to the radiator support. Before finalizing the installation, test the beam alignment to ensure proper headlight positioning and visibility. Use electrical tape to protect connections from dirt and moisture that could compromise the electrical system. Consult color temperature specifications to ensure your replacement bulb meets manufacturer standards for optimal performance. Perform a function test by activating low and high beams, confirming proper operation before closing the hood.
Reassemble Components and Covers
With the electrical connection verified and functioning, return the air filter assembly to its mounting position. Align the filter body over the pins, ensuring grummets remain intact, then push down until it snaps securely. Install the air filter and flip up both clips to lock the cover. Tighten the intake boot clamp with a flathead screwdriver for secure fittings.
Reposition the ECU by lifting it back into its original mount, confirming firm placement without movement. Slide the air hose onto the intake connection. Tuck the wheel well panel material back, ensuring the rubber seal stays intact, then tighten the two 8mm screws. Snap the harness housing into the headlight assembly. Verify component alignment throughout—check that all clips, latches, and weather stripping engage fully without gaps. Inspect wiring and connections to ensure there are no loose or damaged components that could affect headlight operation. For factory LED replacements, professional service is recommended to ensure proper installation and warranty coverage.
Test the New Headlight
Turn the ignition to the “on” position and activate the headlight control to low beam. Observe the new bulb for steady, bright illumination without flicker or dimming, which indicates proper bulb performance. Switch to high beam and verify both filaments operate correctly. If the bulb fails to light or exhibits intermittent behavior, shut off the vehicle and check the connector for secure contact—loose pins cause electrical issues. With the headlights on, walk to the front and confirm the beam pattern appears uniform without dark spots or excessive scatter. Test daytime running lights and automatic headlight functions if your Cherokee is equipped. Note any buzzing sounds or unusual heat from the housing, as these signal electrical faults. If problems persist, use a multimeter to measure voltage at the connector, ensuring approximately 12–14 volts during operation. Set the multimeter to resistance (ohms) mode to test the bulb’s filament continuity if voltage readings are normal but the bulb still fails to illuminate.
Maintenance Tips for Long-Lasting Headlights
Regular lens maintenance prevents premature bulb replacement and maintains ideal light output throughout your Cherokee’s headlight lifespan. Before assuming bulb failure, inspect lenses for dirt or grime accumulation that mimics dimness symptoms. For lens polishing, apply toothpaste to a moistened cloth and rub in circular motions across foggy areas. The gentle abrasives remove oxidation effectively. Wipe away all residue with a clean cloth once clarity returns. Alternatively, use bug spray containing DEET for fog prevention—apply via cloth rubbing until lenses clear, then remove remnants thoroughly. These cost-effective solutions outperform expensive professional services while using common household items. Schedule routine checks to identify grime buildup early, addressing surface issues before they worsen. The toothpaste method works by using mild abrasiveness to remove grime and oxidation that causes headlight fogging over time. Quality halogen bulbs with UV-quartz glass construction provide superior durability and light output when paired with properly maintained lenses. If DIY methods don’t resolve persistent fogging or dimness, visit your dealership’s service center for thorough evaluation and professional restoration solutions.
