Your F-150’s replacement headlights depend on your model year: 2009-2014 trucks use H13 dual-filament bulbs, while 2015-2024 models require H11 low beams and 9005 high beams. You’ll choose between OEM assemblies offering 29,348 candela performance or aftermarket options from Morimoto, AlphaRex, and Anzo. LED upgrades deliver 30,000+ hour lifespans but need CANBUS compatibility verification. 2021+ models feature bi-LED projectors requiring full assembly replacement. This guide covers bulb specifications, brand comparisons, installation requirements, and warranty considerations for ideal headlight performance.
OEM Vs Aftermarket Headlights: Understanding Your Options
When replacing your Ford F-150’s headlights, you’ll face a critical decision between OEM assemblies and aftermarket alternatives—each category delivers distinct photometric performance. OEM advantages include factory LED assemblies that provide superior front lighting width and directional blending with fewer shadows. Performance comparison reveals OEM HID units achieving 29,348 candela low beam versus aftermarket LED bulbs scoring 4.5 overall—though some aftermarket options exceed halogen ratings. Cost differences favor aftermarket solutions, with OE-styled variants remaining most affordable through simple halogen reflector designs. However, aftermarket drawbacks emerge in beam quality; Morimoto XB demonstrates sharper but less blended cutoff lines than factory assemblies. Installation processes typically offer plug-and-play compatibility, while aesthetic preferences vary between factory appearance restoration and modified housing finishes. When evaluating bulb options, brightness levels and color temperature ratings significantly impact both visibility and legal compliance with DOT regulations. LED technology offers longer lifespan and lower energy consumption compared to traditional halogen alternatives, making it an increasingly popular choice for F150 owners seeking durability alongside improved performance. Popular aftermarket brands like AlphaRex, Anzo, and Spec-D provide diverse styling options including sequential turn signals and switchback elements that enhance modern aesthetics.
Compatible F-150 Models and Years (1997-2024)
Understanding which F-150 generation you own directly determines headlight assembly compatibility, bulb size, and replacement strategy. The 10th-generation (1997–2003) typically uses 9007 halogen bulbs, while the 11th- and 12th-gen (2004–2014) shifted to H13/9008 dual-filament configurations. Factory HID options appeared on higher trims during 2009–2014, creating significant trim variations within identical model years. The 13th-generation (2015–2020) introduced separate low/high bulb sets—commonly H11 low and 9005 high—depending on trim and optional lighting packages. Bulb compatibility cannot be assumed by year alone; Lariat, King Ranch, and Platinum trims often feature HID or LED factory systems requiring different assemblies than base XL models. The 14th- and 15th-gen (2021–2024) increasingly deploy full LED modules, shifting replacement from individual bulbs to complete assembly-level servicing. Most F150 models from 1997 through 2020 can be upgraded to LED with plug-and-play kits designed for easy installation. When selecting replacements, prioritize beam pattern quality to avoid glare for oncoming drivers while ensuring compliance with DOT regulations. When selecting replacements, consider factors like light output measured in lumens, color temperature, and beam pattern quality to ensure optimal visibility and safety during nighttime driving.
Bulb Types and Sizes: H13, H11, 9005, and 5202 Explained
Before ordering replacement headlights, you must identify the exact bulb configuration your F-150 uses—a specification that varies by generation, trim level, and factory lighting package.
2009-2014 models utilize H13 (9008) dual-filament bulbs for combined high/low beams. From 2015-2024, Ford shifted to separate beam architecture: H11 low beams paired with 9005 (HB3) high beams in base XL/XLT halogen configurations. Fog lights employ 5202 bulbs (equivalent to H10/9140/9145) across 2015-2024 trims.
Installation tips require verifying CANBUS compatibility when upgrading to LED replacements, particularly with 9005 high beams. Factory dust covers accommodate most aftermarket LED upgrades without modification. When connecting replacement headlamp sockets to your vehicle’s wiring harness, ensure you twist wires together to create a secure mechanical bond before crimping or soldering. Bulb lifespan comparison shows halogen H11 bulbs averaging 500-1,000 hours versus LED alternatives exceeding 30,000 hours. Consider color temperature preferences when selecting between halogen and LED options, as they significantly impact visibility and driving comfort. Factory LED lights cannot be changed and require consulting an authorized dealer for service. Always cross-reference your specific model year and trim before purchasing.
Top Aftermarket Brands for F-150 Headlights
Aftermarket headlight assemblies for the F-150 span a performance and styling spectrum from budget-conscious DOT-compliant housings to premium projector systems engineered for optimized beam patterns and lux output. Morimoto performance leads in bulb brightness and cutoff control through its XB and XB Hybrid series, emphasizing road-legal optics and plug-and-play integration. AlphaRex styling prioritizes distinctive DRL signatures and customizable bezels in its NOVA lineup, blending aggressive aesthetics with upgraded lighting technology. Anzo compliance centers on SAE/DOT-certified housings that meet headlight regulations at moderate price points. JC Whitney delivers OE-quality assemblies with halogen bulb options and customized color lenses, backed by over 100 years of automotive parts experience. When reviewing aftermarket trends, focus on photometric testing data from specialist retailers and verify installation tips for CANBUS compatibility. Comparing brightness levels and longevity across different bulb types helps F-150 owners balance immediate visibility gains with long-term durability and value. Premium brands typically offer factory-backed warranties and superior beam engineering, while mid-tier options balance visual impact with regulatory standards.
LED Upgrade Kits: Performance and Installation
When selecting LED upgrade kits for F-150 headlights, you’ll encounter measured lumen outputs ranging from approximately 665 lm on low beam to over 1,700 lm on high-output modes, with intensity (candela) values frequently exceeding 80,000–106,000 cd on quality assemblies. Color temperature typically falls between 5000–6500K, with 6000K serving as the daylight standard. Power draw per channel ranges from 20–60 W depending on mode, operating within 9–16 V compatibility.
Thermal management employs either passive aluminum heatsinks or active micro-fan cooling, with IP67 sealing standard for dust and water resistance. Installation requires CANBUS decoders or resistors to prevent bulb-out errors on vehicles with monitoring systems. Model-year-specific kits (2018–2020 without OEM LEDs) include plug-and-play harnesses matching stock connectors, ensuring proper fitment and beam pattern alignment. Premium aftermarket assemblies for 2021-2023 models feature dual bi-LED projectors that deliver nearly double the peak intensity compared to factory projector lamps.

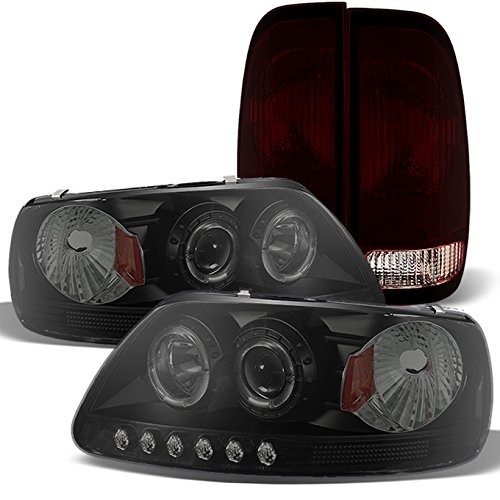

Projector and Halo Headlight Options
Projector-style replacement headlights for the F-150 integrate purpose-built optical assemblies that surpass standard reflector housings in beam control and light distribution. You’ll find dual LED projector types featuring patented rectangular lenses with precise cut-off lines meeting LHD regulations. These assemblies utilize H11 low beam and 9005 high beam bulbs in plug-and-play configurations requiring no vehicle modification.
Halo styles include switchback DRL functionality shifting from white to amber during turn signal activation. Dynamic LED strips deliver sequential amber signals, while OLED DRL strips maintain constant visibility during engine operation. Available activation sequences provide light shows upon vehicle release. When selecting between projector and halo options, consider how beam patterns affect your visibility during different driving conditions. The quality of your bulb choice, measured by light output in lumens, will significantly impact nighttime safety and overall visibility performance. Housing variants span black, chrome, matte black, and smoked lens options across 2004-2025 F-150 halogen models. The smoked lens configuration pairs with black housing to create a distinctive appearance while maintaining DOT compliance. DOT/SAE compliance guarantees regulatory adherence with 6000K output delivering superior nighttime projection over factory assemblies.
Factory LED Systems in 2018+ F-150 Models
Ford integrated full LED headlight systems as standard equipment on higher-trim 2018+ F-150 models, representing a departure from traditional halogen configurations that accept user-replaceable bulbs. These factory assemblies utilize reflector-type designs with black housing and UV-protected clear lenses, delivering superior LED headlight benefits including enhanced visibility and longevity. You’ll find these systems on 2018-2020 Raptor variants as well, though the assemblies remain non-serviceable at the component level.
The factory design features impact-resistant construction with leak-free housing that maintains long-term reliability. Unlike halogen systems using H11 and 9005 bulbs, you can’t replace individual LED components yourself. Ford’s genuine OEM assemblies require dealer service for repairs, carrying part number HL3Z-13008-L for black housing variants. To maintain clarity and prevent performance degradation, consider applying UV protectant sealing to the lens exterior as a preventative maintenance measure. LED technology offers superior energy efficiency compared to traditional halogen lights, reducing the electrical load on your vehicle’s battery system. Direct-fit replacements install in approximately 30 minutes without modifications. Verify your trim level before purchasing replacement assemblies, as higher trims may have different specifications.
Advanced Features: OLED DRL and Dynamic Turn Signals
Advanced aftermarket headlight assemblies integrate OLED daytime running light technology that delivers ultra-high-power smooth white illumination, replacing the factory halogen DRL circuits found in 2018-2020 F-150 models. OLED technology benefits include enhanced visibility, reduced power consumption, and a modern appearance through smoked or clear lens configurations. These systems come pre-installed in RECON projector assemblies, maintaining compatibility with H7 LED bulb upgrades.
Turn signal customization extends beyond static amber LEDs. You’ll find scanning high-power sequential strips in 2018-2020 applications, while 2021-2025 projectors feature dynamic LED sequences with startup animation effects. Oracle’s ColorSHIFT DRL kits provide Bluetooth control through smartphone applications, offering over 200 pre-programmed patterns. The switchback function integrates white DRL operation with sequential amber turn signals, controlled via voltage-regulated harnesses and LED controllers. Installation for these projector headlights requires no modification, as they fit directly into standard OEM factory halogen reflector housing.
Engine and Transmission Compatibility Guide
When selecting replacement headlight assemblies for your F-150, you’ll find that engine displacement and transmission type don’t directly affect mounting points or electrical connections, though model year changes create distinct compatibility brackets. The 4.2L V6, 4.6L V8, and 5.4L V8 engine types from 1997-2008 share composite halogen housings regardless of whether you’re running a 4R70W or 4R75E transmission. EcoBoost variants introduced in 2009 maintain identical headlight mounts across 6R80 and 10R80 transmission options. Your VIN decode confirms engine code and transmission specifications, while build sheets verify exact headlight pairings. Super Duty cross-compatibility exists where F-250/350 models share bulb patterns with corresponding F-150 years. LED and HID retrofits require CAN-bus adapters on 2021+ PowerBoost hybrid configurations, independent of the 10-speed automatic beneath. Always verify bulb size compatibility such as H11 for low beams and 9005 for high beams before installation to ensure proper fit and performance.
Warranty Coverage and Maintenance Tips
Understanding warranty parameters before your F-150’s bumper-to-bumper coverage expires prevents costly headlight replacements you’d otherwise receive at no charge. Factory coverage spans 36,000 miles for housing defects including crazing, delamination, and seal failures. Document these issues before expiration. Ford ESP extended plans cover bulbs and electrical components through the contract term, while CPO warranties exclude LED, HID, and sealed beam assemblies despite 12-month extensive coverage.
Inspect headlight housings for hairline fractures and chrome deterioration at warranty intervals. Aftermarket installations like Diode Dynamics’ IP67-rated units provide 8-year protection but void OEM coverage for related damage. Maintenance schedules don’t include lamp replacement—you’ll handle bulb changes separately. LED technology offers superior illumination quality compared to halogen alternatives, which may influence your aftermarket upgrade decisions. Financing the warranty allows you to spread extended service plan costs over manageable monthly payments rather than paying the full amount upfront. Verify exact warranty limitations through your VIN before authorizing repairs. Installing non-compliant components risks powertrain warranty denial if they cause electrical system failures.
