To replace your H11 headlight connector, you’ll first disconnect the battery’s negative terminal for safety. Cut the wires near the damaged connector, then strip half an inch of insulation from each wire. Use heat-shrink butt connectors rated for 16-14 AWG to join the new pigtail harness, ensuring proper color matching—black for ground, and yellow/white/red for positive. Crimp securely, apply heat shrink with solder, and coat connections with dielectric grease. Test voltage with a multimeter before reassembly to confirm you’re getting 12-14V at the power pin. The sections below provide detailed techniques for long-lasting results.
Understanding H11 Connector Types and Compatibility
The H11 headlight connector employs a two-prong flat plastic housing with side-by-side power and ground terminals designed for single-filament bulbs. This PX26d-style connector types design shares identical physical dimensions with H8, H9, and H16 bulbs, making them mechanically interchangeable in many applications. However, compatibility overview extends beyond just physical fit—you’ll need to verify your vehicle’s bulb chart since different circuits may use the same connector.

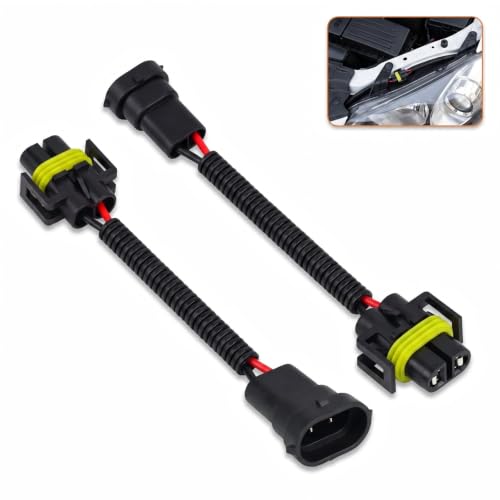

Pin layouts feature molded index tabs ensuring correct orientation and proper sealing against moisture. Aftermarket options include replacement pigtails in 6–12″ lengths with 16–18 AWG conductors. Look for sockets with integrated rubber o-rings and locking tabs. Premium aftermarket options utilize ceramic housings and gold-plated terminals for superior heat resistance and corrosion protection, matching OEM specifications for safe current handling. The H11 socket operates at 55 watts and is optimized for low beam and fog light applications in modern vehicles. When selecting bulbs, consider how brightness levels and color temperature impact both visibility and aesthetics. When upgrading your headlights, understanding the differences between halogen, LED, and HID technologies can help you select the most appropriate bulb type for your specific needs.
Identifying Common Failure Modes and Symptoms
When diagnosing H11 headlight connector problems, you’ll encounter four primary failure modes that produce distinct symptoms requiring different repair approaches.
Thermal damage presents as melted plastic, charred housing, or deformed terminals—typically caused by excessive current draw or undersized wiring creating resistance-based heating.
Contact degradation manifests through corrosion (green/white deposits), pitting, and carbonization (blackened terminals), resulting in flickering lights and voltage drop. Loose or corroded wiring can also lead to intermittent power issues affecting headlight performance. A weak or dying battery may exacerbate voltage drop symptoms during startup, making connector corrosion issues more pronounced.
Electrical intermittency appears as bulb flicker correlated with vibration, engine RPM, or thermal cycling, often triggering CANbus error messages with LED retrofits. These issues are particularly common in vehicles like the Nissan Rogue, where headlight assembly replacements may be necessary if connector damage is severe.
Mechanical failures include loose-fitting bulbs, backed-out terminals, or deformed connector lobes from repeated installation cycles.
Accurate symptom identification determines whether you need simple terminal cleaning, complete pigtail replacement, or upstream wiring repairs—preventing misdiagnosis and ensuring reliable restoration.
Gathering Required Tools and Materials
Successful H11 connector replacement requires assembling specific tools and materials before beginning work to prevent mid-repair delays and guarantee proper repairs. For tool organization, you’ll need a flathead screwdriver for dust cover removal, crimping tool for wire connections, and hooks or picks for wire handling. A lighter or heat gun activates heat shrink components. Safety glasses and protective gloves protect against eye injury and prevent oil contamination on replacement bulbs.
Material selection includes Dorman H8/H11 2-wire harness socket with corrosion-resistant contacts, or Conduct-Tite 2-terminal connectors. You’ll need heat shrink butt connectors (22-16 gauge) with waterproofing glue, heat shrink tubing, and zip ties. Purchase a pair of H11 LED bulbs and keep a flashlight nearby for visibility in confined spaces. When selecting replacement bulbs, consider reputable brands like SEALIGHT S1 Series for cost-effective reliability or SEALIGHT S7S Series for premium brightness and performance. Understanding color temperature preferences helps ensure your new bulbs meet both your visibility needs and local regulations. Careful bulb handling prevents damage that could compromise headlight performance and longevity.
Accessing the Headlight Housing Assembly
With tools and materials organized, you’re ready to access the headlight housing assembly where the H11 connector resides. Begin by removing the dust cover at the rear of the headlight housing behind the engine bay—twist it counterclockwise if removable. This exposes the halogen bulb and provides wiring access to the connector.
For complete headlight assembly removal, loosen three 10mm bolts: one under the windshield cover, one on the radiator support, and one in the wheel well. Remove plastic pop rivets from the bumper and wheel well using a flathead screwdriver for clearance. Secure the 12mm bolt location last.
Once all fasteners are loosened, grip the housing firmly and pull forward, wiggling upward past the fender. The assembly withdraws when properly aligned at three mounting points. You’ll notice three bulbs installed in the housing: the main headlight, the high beam, and the side marker light.
Removing the Damaged Connector
Before touching any electrical components, switch off the headlights and disconnect the vehicle’s negative battery terminal to eliminate shock hazards. Begin connector extraction by locating the H11 bulb holder behind the headlight assembly. Remove the rubber or plastic dust cap covering the bulb socket. Pry up the retaining clip securing the wire harness, then pull the electrical connector away from the socket carefully. Use a hook tool to free any captive tabs or wings on the wiring.
For wiring safety, open the wire loom and strip away old electrical tape from the harness. Cut the wires close to the damaged connector using wire strippers sized appropriately for the insulation. Snip off the burnt H11 socket completely, preserving maximum wire length for subsequent splicing operations. After removing the damaged connector, ensure the headlight lens is clear by checking for any oxidation or haziness that may affect light output during testing. Wear protective gloves throughout the process to avoid direct contact with electrical components and prevent oil transfer from your skin to any exposed parts.
Preparing and Mapping Wire Connections
Accurate wire identification prevents electrical faults, bulb-out warnings, and potential short circuits that can damage your vehicle’s lighting control module. Begin wire color identification by consulting your vehicle’s OEM wiring diagram—black typically indicates ground, while yellow, white, or red often signal positive feeds. Aftermarket pigtails may lack standard colors, so use a multimeter to verify continuity and polarity. Apply voltage testing methods with your headlight switch on: measure DC voltage at each connector terminal, confirming the fused feed shows +12–14 V only when activated. Test continuity from the ground terminal to chassis. The wire pattern does not significantly affect operation as it is DC. Label each verified wire immediately with heat-shrink markers or vinyl tape. Document your findings in a simple diagram for future reference and maintenance.
Joining Wires With Proper Techniques
Once you’ve identified and labeled your wires, the reliability of your headlight repair depends entirely on how you join them. Select butt connectors that match your wire gauge—typically 16-14 AWG for H11 headlight circuits. Strip half an inch of insulation, then insert the wire until it seats completely with no exposed strands.
Position your ratcheting crimpers perpendicular to the connector and squeeze through the full cycle until the tool releases. This guarantees consistent pressure without over-crimping. Complete both the primary crimp on the wings and secondary crimp over the insulation jacket.
Verify each connection with a firm tug test—the wire shouldn’t pull free. Check continuity with a multimeter before sealing. Inspect the connection for loose strands or exposed metal that could cause short circuits. Proper crimping techniques create vibration-resistant connections that outlast soldered joints in automotive applications. Well-executed connections also help maintain proper headlight aiming for optimal nighttime visibility and safety, and ensure your bulbs can deliver the brightness output necessary for safe driving conditions.
Sealing and Securing the New Connector
After completing your crimped connections, you’ll need to protect them from moisture and vibration that destroy electrical systems in automotive environments. Proper sealant selection determines connection longevity in headlight applications.
Apply heat shrink tubing with solder over each crimped wire for weatherproof security. Heat the tubing until solder flows completely, creating a watertight barrier. Apply dielectric grease to the bulb’s electrical connector exterior, avoiding internal metal contacts where it would increase resistance. The non-conductive properties enhance moisture protection without interfering with current flow.
For the connector body, make certain the sealing ring on the bulb cap remains intact and clean. Coat this silicone ring lightly with dielectric grease for enhanced water sealing in enclosed headlight assemblies. Matching your connector components to other bike accessories creates a cohesive appearance while maintaining electrical integrity. If the new connection fails prematurely, you may need electrical diagnosis by a professional to determine if there are underlying issues beyond the connector itself. If reassembling headlamp housings, apply RTV waterproof silicone sealant with a 3/16 bead for optimal coverage. Avoid pressure washing near connections during the initial 24-hour curing period.
Testing and Verifying Proper Operation
With your new connector sealed and secured, you’ll need to verify that electrical current flows correctly before closing up the headlight assembly. Start by measuring DC voltage at the power pin with headlights on—expect 12–14.5 V. Check the ground pin reads near 0 V relative to battery negative. Toggle between low and high beams, confirming only the active circuit shows battery voltage. Compare connector voltage to battery voltage; drops exceeding 0.5–1.0 V indicate resistance issues affecting connector compatibility. With power isolated, measure resistance from the power pin to battery positive and ground pin to chassis—both should read low ohms, confirming connection stability. Set your multimeter to the 20 volts scale and verify the low beam reads approximately 12.4 volts when activated. Finally, perform wiggle tests while monitoring voltage to detect intermittent faults before reassembly.
Following Best Practices for Long-Term Reliability
Long-term reliability of your H11 headlight connector depends on selecting the right materials and executing every step with precision. Use OEM or OEM-equivalent pigtails with gold- or tin-plated contacts for superior corrosion resistance. Choose silicone-insulated wire rated for automotive temperatures and seal all splices with adhesive-lined heat-shrink to prevent moisture intrusion. Apply dielectric grease sparingly to mating surfaces—not inside crimps—to enhance connector maintenance and conductivity. Route wires with gentle bends and secure them with cable ties for strain relief against vibration fatigue. Upgrade ground connections by cleaning metal surfaces and using star washers torqued to spec. Add inline fuses to protect against overloads, and monitor connections periodically for signs of heat or corrosion to catch failures early. Top-rated connector options from leading manufacturers offer plug-and-play installation features that simplify the replacement process for most vehicle owners. Ensure your replacement bulbs meet legal compliance with road safety regulations to maintain proper headlight performance standards. Before securing everything in place, always test the headlight functionality using both daytime running lights and low beams to verify consistent operation.
