To replace your BMW’s headlights, first identify whether you’ve got halogen, xenon HID, or LED assemblies by checking your owner’s manual. Disconnect the negative battery terminal, then access the headlight through the engine bay or wheel well using a T30 Torx screwdriver. Remove the electrical connector by depressing its locking tab, rotate the bulb holder counterclockwise, and extract the old component. Install the new assembly, reconnect wiring until you hear an audible click, then test all functions and adjust the beam pattern. This guide provides thorough troubleshooting steps for ideal results.
Confirm Your BMW Headlight Type and Gather Required Tools
Before attempting any headlight replacement on your BMW, you’ll need to identify which of four distinct lighting technologies your vehicle uses: halogen, xenon HID, LED, or adaptive/laser. Halogen units feature visible tungsten filaments with replaceable H7, H11, or H4 bulbs behind clear lenses. Xenon systems incorporate blue-tinted projectors with cylindrical bulbs and control ballasts. LED assemblies display integrated light sources with U-shaped or L-shaped daytime running signatures and “BMW LED” inscriptions. Adaptive LED and laser variants feature specific light graphics with “BMW Adaptive LED” or “BMW Laser” markings.
Confirm your headlight types through your owner’s manual or vehicle documentation. Note bulb specifications including socket size and color temperature ratings between 4300K–6000K. Gather manufacturer-approved replacement components matching your OE numbers precisely. Proper beam patterns ensure you avoid blinding other drivers while maximizing your own visibility. Laser headlights can be distinguished by blue accents shaped into an ‘X’ pattern on BMW X models, providing enhanced visibility up to 530 meters. Different headlight bulb options offer varying levels of brightness and energy efficiency to suit your visibility and safety needs.
Prepare Your Vehicle and Disconnect the Battery
Proper vehicle preparation establishes a safe foundation for headlight replacement and protects your BMW’s sensitive electrical architecture from damage. Begin by ensuring vehicle stability—park on a flat, level surface, engage the parking brake firmly, and place the transmission in park. Allow the engine to cool completely before proceeding.
Battery safety requires disconnecting the negative terminal to prevent electrical hazards. Locate your battery (engine bay or trunk, model-dependent), then use a wrench to loosen the negative terminal clamp. Remove the cable and secure it away from the post. Wait 10-15 minutes for residual power discharge. This critical step prevents short circuits, inadvertent airbag deployment, and damage to control modules during headlight wiring manipulation. After replacement, consider applying protective coating or wax to your new headlights to maintain clarity and prevent yellowing over time. Gather your essential tools including a T30 screwdriver, punch, hammer, and wrench before beginning the removal process. Wear safety glasses and gloves throughout preparation.
Access the Headlight Assembly From the Engine Bay or Wheel Well
Once the battery is disconnected and residual power has dissipated, you’ll gain physical access to the headlight assembly through one of three factory-designated routes: the engine-bay top, the front bumper area, or the wheel well.
For engine bay access, remove the plastic engine cover and air-intake ducting to expose upper T30 Torx or 10mm fasteners. Use extensions and swivel adapters to reach recessed bolts without removing adjacent components. Verify the correct bulb type for your model before proceeding with removal to ensure compatibility during reinstallation.
The wheel well approach requires turning the steering to full lock, removing the wheel, and detaching the inner fender liner using 8mm screws or plastic push rivets. This exposes lower and side attachment points. After removing retention screws, pull the fender liner from the vehicle to provide clear access to the headlight mounting hardware.

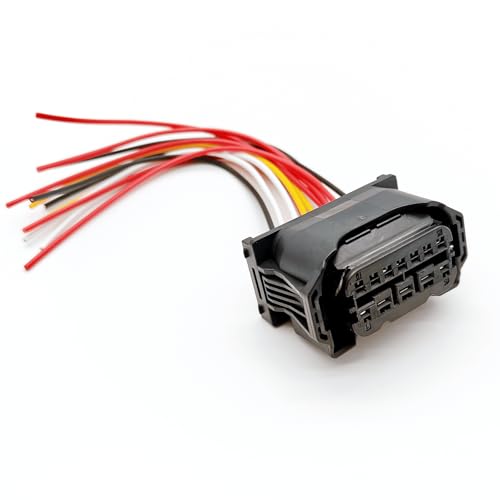

Both methods demand T30 drivers, 10mm sockets, universal joints, and trim tools. Keep fasteners organized, apply penetrating lubricant to seized bolts, and use protective padding between the headlight and fender during extraction. Ensure your replacement harness matches the vehicle’s factory specifications to maintain proper functionality of all adaptive headlight features.
Remove the Electrical Connector and Retaining Hardware
With physical access to the headlight assembly secured, you’ll now disconnect the electrical harness and remove all retaining hardware that secures the unit to the chassis. First, disconnect the battery negative terminal and verify zero voltage across connector pins using a multimeter. Inspect the connector types—BMW typically uses Deutsch or OEM plastic housings with locking tabs and secondary locks. Depress the external locking tab while pulling straight back; check for hidden screws if resistance occurs. Document wire colors and pin positions before separation. Next, identify all fastening techniques: Torx screws, hex bolts, and plastic push clips. Select correct-sized tools to prevent rounding. Support the headlight before removing the final fastener to avoid wiring strain. Apply penetrating lubricant to seized bolts and organize hardware by location for reassembly. To maintain long-term clarity after installation, consider applying UV headlight sealant to help prevent future yellowing or hazing of the new assembly. Inspect old connectors for yellow and brittle deterioration, as this indicates the need for replacement to prevent future headlight flickering or bulb burnout.
Extract the Old Bulb or Headlight Module
Grasp the bulb holder firmly at its base and rotate counterclockwise approximately 45 degrees until you feel the retaining tabs disengage from their slots. Pull the bulb straight out from the housing, maintaining a 12 o’clock orientation for H7 bulb types. For HID Xenon bulb types like D1S, twist the holder counterclockwise until fully released. Never touch the glass envelope—handle only the metal base or ceramic plate to prevent oil contamination that causes premature failure. If you encounter resistance from the rubber gasket, gently jiggle the assembly while maintaining straight extraction force. Inspect the removed bulb for blown filaments or discoloration before disposal. Push down on the retaining bracket to release the bulb from its secured position. Note the exact positioning and orientation for proper reinstallation, ensuring removal techniques match your specific BMW model’s configuration. After extraction, consider applying a UV sealant to the headlight housing to protect against future oxidation and clouding.
Install the New Bulb or Assembly With Proper Alignment
After removing the old bulb, prepare to handle the replacement with proper technique to guarantee longevity and peak performance. Use clean gloves when gripping the new H7 halogen bulb—avoid touching the glass surface, as skin oils create hotspots that cause premature failure. Inspect the bulb for defects, then align tabs with socket grooves, maintaining correct bulb orientation (tab at 12 o’clock). Push gently until fully seated; twist clockwise or engage the retaining clip for a secure fitting. For HID systems, attach the metal clip after insertion. Reinstall the holder by positioning pegs into bottom slots, ensuring hooks engage without pinching wires. Replace the dust cover clockwise, verify the rubber gasket seals properly, then test illumination. Consider upgrading to LED or HID styles for improved lighting performance and longevity compared to standard halogen bulbs. Proper beam pattern quality ensures optimal visibility and prevents blinding oncoming drivers. Before finalizing the installation, ensure the headlight housing remains sealed to prevent moisture intrusion that can compromise the entire lighting system. Adjust beam aim using side screws if necessary.
Reconnect Wiring and Secure All Components
Once the new bulb sits securely in its socket, locate the wiring harness connector corresponding to your headlight assembly—connector X13420 for the driver’s side or X13421 for the passenger’s side on most models. Align low beam wiring to pin 3, high beam to pin 6, and common ground to pin 4, confirming proper bulb alignment before finalizing wiring connections. Match wire colors: Yellow/Green or Yellow/Blue for low beam, White/Green or White/Blue for high beam, and Brown for ground. Press the connector firmly until the locking tabs engage with an audible click. Verify polarity by checking positive terminals connect to beam pins and negative to common ground. Secure the dust cap over the housing, ensuring moisture protection. Route excess wiring through existing harness clips, avoiding pinch points near moving components for long-term reliability. If you encounter connectivity issues, check that the pins inside the plugs are straight and not bent, as straightening them can often resolve the problem.
Test All Headlight Functions Before Final Reassembly
With all connections locked in place, turn the ignition to position II without starting the engine and begin your functional verification. Activate low beams first, checking color uniformity and light-dark boundary definition. Switch to high beams, ensuring no dashboard warning messages appear. Test turn indicators on both sides for proper operation. Engage daytime running lights against varied lighting conditions. If error codes display, connect your ICOM Next A interface via OBD II port to access BMW ISTA diagnostic software. Navigate to the fault memory tab within the Control Unit Tree to identify specific headlight ECU errors. Execute recommended test plans, including light blinking sequences for headlight testing. Swap suspect bulbs between sides to isolate failures. For adaptive headlight systems, verify proper illumination adjustments by testing against different ground surfaces such as asphalt, footpath coatings, and smooth floors to ensure correct light distribution patterns. Complete functionality verification confirms you’re ready for final reassembly and proper headlight alignment procedures.
Adjust Beam Pattern and Aim for Optimal Performance
Proper headlight alignment directly impacts road safety and prevents blinding oncoming drivers, making this adjustment critical after any BMW headlight replacement.
Position your vehicle three feet from a wall and activate low-beams. Apply vertical tape strips at the beam pattern‘s center and top edge. Measure the low-beam centerline height, then mark a horizontal reference two inches below on the tape.
For LED bulbs, loosen the base set screw and rotate until chips align at 3 o’clock and 9 o’clock positions for peak performance. Tighten to secure.
Reverse 25 feet from the wall. Using a Phillips screwdriver or 6mm hex wrench, rotate the vertical adjustment screw clockwise to raise or counterclockwise to lower. Adjust the lateral screw to center the beam pattern within tape boundaries, ensuring the brightest area meets your reference line. A properly adjusted pattern creates sharp cut-off lines that prevent glare for oncoming traffic while maximizing road illumination.
Troubleshoot Common Issues and Verify Proper Operation
After confirming your headlights align correctly, you’ll need to verify they function reliably under real-world conditions. Begin corrosion diagnosis by accessing modules through the wheel well—remove two screws to inspect for moisture-related LED failure. Compare suspect units against new modules for visual confirmation. For bulb testing, swap LED or HID bulbs between sides; if the problem reverses, you’ve identified a faulty bulb. With HIDs, disconnect the battery first due to high voltage, then avoid touching xenon glass. Test polarity by unplugging and rotating connectors 180 degrees. Use ISTA or Bimmer Link to scan fault codes—brief headlight activation confirms power supply presence. Clear codes, rescan, and verify all connections remain secure before final validation. Water intrusion and damaged seals can compromise the adaptive headlight module, so inspect the headlight housing for signs of condensation or moisture damage. When replacing bulbs, take care to avoid skin contact with the bulb glass as this can damage the component. Replacement modules typically cost between $30 to $40 and are readily available from online suppliers.
