To replace your 9012 halogen bulb with an LED, first disconnect your battery’s negative terminal and wear clean gloves to prevent contamination. Access the headlight assembly from the engine bay, turn the dust cover counterclockwise, then unplug the connector and rotate the old bulb out. Insert your new 9012 LED by aligning the base tabs with the socket slots until you hear a click. If you experience flickering, you’ll need to install load resistors or decoders. This guide covers everything from proper tools to troubleshooting techniques.
Safety Gear and Tools You’ll Need
Before replacing your LED headlight bulbs, you’ll need specific safety gear and tools to complete the job correctly and protect both yourself and your investment. Clean glove types prevent skin oils from contaminating glass surfaces and shortening bulb lifespan—avoid bare hand contact with electrodes or the glass envelope. Protective eyewear guards against glass shards if breakage occurs during installation.
For tools, gather a screwdriver or wrench to access headlight housing covers. An 8mm socket loosens clamps on specific assemblies, while a flat screwdriver safely pops connectors. Compressed air cleans the assembly before inserting new bulbs. When selecting replacement bulbs, consider color temperature preferences ranging from warm yellow to cool white light to match your desired lighting performance.
Essential preparation includes parking on a flat surface with the engine off. Test your new bulbs before full reassembly to verify function and avoid repeating disassembly steps. Disconnect the battery to prevent electrical issues during the replacement process. Always compare your new bulb with the old one before insertion to ensure you have the correct bulb type for your specific Kia model.
Locating and Accessing the Headlight Assembly
Where exactly is your headlight assembly, and how do you reach it? Your headlight location sits behind the front grille on either side, featuring a rear dust cap for bulb entry. Most 9012 assemblies use a donut-style boot or twist-lock mechanism.
For assembly access, start by opening your hood. If accessible, reach directly into the housing from the engine bay. For obstructed setups, turn your front wheels and loosen the fender cover. Remove fender liner clips and bolts, then pull the panel back for clear housing visibility.
In tight configurations, you’ll need partial or full front bumper removal. Once exposed, pop off the rear cover counterclockwise. You’ll see the bulb assembly with its three-pronged connector attached to the wiring harness. When replacing your bulb, compare the replacement bulb to your old one to ensure proper fit and compatibility. Before beginning any work, ensure the engine is off and the vehicle is parked on a level surface. This grants complete access for safe bulb replacement.
Removing the Dust Cover and Stock Halogen Bulb
Turn the dust cover counterclockwise until it detaches from the headlight housing threads. On some vehicles, you’ll need to lift a plastic shroud or pop rivets with a trim tool first. Slide your hand under the cover’s lip to release retaining clips, then maneuver it away from surrounding components.
Next, unplug the power connector from the halogen bulb by lifting the tab or using a screwdriver. Rotate the bulb counterclockwise from the 7 o’clock to 10 o’clock position to detach it from the housing. Note the bulb’s orientation during extraction to guarantee proper reinstallation.
Dust cover techniques vary by vehicle model, while halogen bulb extraction remains consistent. Wear gloves throughout the process—avoid touching the glass surface, as oils compromise performance. Before beginning work on your headlights, always disconnect the vehicle’s battery to ensure safety. You may need to access the headlight housing from the engine compartment by opening the hood.

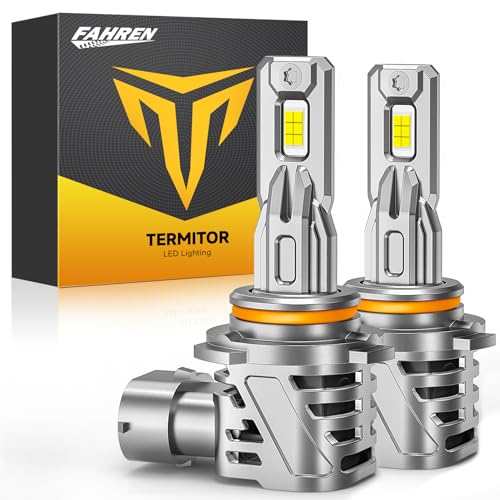

Installing Your New 9012 LED Bulb
Start by confirming the vehicle’s ignition is off and the battery’s negative terminal is disconnected—this prevents electrical shorts and accidental headlight activation during installation. Handle the 9012 LED bulb by its heat sink or base only; never touch the emitter or cooling surfaces. Align the base tabs with the socket slots and insert straight without forcing. Rotate clockwise until you feel the locking mechanism engage. Verify the LED orientation matches the original filament position for ideal lighting and correct beam pattern. Attach any external driver or CANbus harness per kit instructions, routing wires to avoid kinks. Reconnect the electrical connector until it clicks. Test illumination before reassembly. After confirming the bulbs work correctly, you may need to adjust the headlight aim to ensure proper road illumination and prevent blinding oncoming drivers. Proper LED bulb maintenance requires checking for secure fitment and error-free operation before final assembly.
Securing Components and Putting Everything Back Together
After confirming your LED bulb operates correctly, begin reassembling the headlight system by working in reverse order of disassembly. Replace the dust cover or rear housing, ensuring proper component alignment with all tabs and slots. Secure using vehicle-specific securing methods—whether clips, bolts, or screws removed earlier. For models like the GMC Sierra, reposition the air cleaner cover with four 8mm bolts. Carefully bend the wheel well panel back into place without breaking it.
Before final closure, tug the connector gently to verify secure fit. Inspect for obstructions, loose parts, or wire damage. Confirm all tabs, clips, and locks are properly engaged. Check for moisture and dust protection if the dust cover or rear housing seal appears compromised. Slide the housing back into the frame, aligning tabs with slots and quarter-turning until you hear the click. Avoid forcing if resistance occurs. When selecting replacement bulbs, consider brightness and color temperature to ensure optimal visibility and performance. Verify that your replacement bulb complies with DOT regulations to ensure legal compliance and safe operation on public roads.
Testing Your New LED Headlights
Why risk driving with potentially defective LED headlights when proper testing takes only minutes? Start with visual inspection—check for cracks, bent pins, or corrosion on contacts. Set your multimeter to ohms mode and touch probes to the bulb base. Infinite resistance indicates failure; low resistance confirms functionality. Switch to DC volts mode, reconnect the bulb, and activate headlights. You’ll need a 12V reading at the contacts for proper supply. Always turn off the engine and remove the ignition key before beginning any electrical testing to prevent shock hazards. If you’re upgrading from halogen to LED, consider installing load resistors to simulate the original power draw and prevent error messages. Verify that your replacement bulbs meet DOT compliance standards to ensure legal roadworthiness and proper beam patterns. For thorough performance comparison, conduct bench testing using a power supply. Measure initial lux at 20 feet, then recheck after 27 minutes of operation. Compare results against the stock halogen baseline of 725-910 lux. These testing methodologies guarantee your LED headlights deliver peak brightness and reliability before hitting the road.
Troubleshooting Flickering and Load Resistor Installation
When your newly installed LED headlights flicker, you’re witnessing a communication breakdown between the bulb and your vehicle’s electrical system. Your flicker diagnosis begins with checking battery terminals and bulb sockets for corrosion or loose connections. Most 9012 LED systems flicker because they draw 15-35W compared to halogen’s 55W, triggering your CANbus computer’s error detection.
Load resistors solve this by mimicking halogen power consumption. Install them with proper resistor placement—mounted on metal surfaces away from rubber components, as they generate significant heat. For plug-and-play solutions, 9012 HIR2 decoders combine resistors, capacitors, and circuit boards to eliminate 90% of flickering issues. They’ll prevent dashboard warnings, hyper-flashing, and lights-off problems during engine start. If flickering persists every 15-20 minutes after installation, test your alternator and battery for underlying electrical faults. LED headlights provide instant-on capability and do not fade over time, making them superior to traditional alternatives when properly installed. Before assuming complex electrical problems, ensure all bulbs are securely fitted in their sockets and check for any blown fuses in the headlight circuit.
Understanding 9012 Bulb Functions and Performance
Your flickering concerns resolved, you’ll now need to evaluate whether LED replacements match your performance requirements. Standard 9012 halogen bulbs deliver 1700 lumens at 55 watts, providing baseline reference points. LED alternatives dramatically improve bulb brightness—SEALIGHT S3 outputs 32,000 lumens per pair (700% brighter), while Novsight N60 achieves 40,000 lumens. You’ll benefit from superior energy efficiency: ORACLE VSeries draws only 17W per bulb versus halogen’s 55W, exceeding 100 lm/W efficacy. Morimoto 2Stroke consumes 18-22.5W while delivering 2,600 lumens. Lifespan differences prove substantial—halogen’s 700 hours compare unfavorably against LED options ranging from 20,000 to 100,000 hours. LED upgrades eliminate warm-up time by providing instant brightness activation, unlike halogen bulbs that reach full output gradually. Color temperature typically ranges 5500K-6500K, enhancing obstacle clarity beyond halogen’s 3200K output. When selecting between bulb technologies, consider legal requirements in your region, as some jurisdictions restrict LED headlight modifications for street use.
