To replace your Toyota Tundra’s headlight, you’ll first remove the front grille by extracting four 10mm bolts and releasing push-pin clips. Next, disconnect the crash sensor harness if equipped with Toyota Safety Sense, then remove three primary mounting bolts securing the headlight housing. Extract the old bulb by rotating it counterclockwise, install the new 9003/H4 bulb using gloves to prevent oil contamination, and reassemble components in reverse order. Testing both low and high beams confirms proper installation, while the extensive steps below guarantee you’ll achieve professional-grade results.
Gathering Your Tools and Materials
Before beginning any headlight replacement on your Toyota Tundra, you’ll need to assemble the proper tools and materials to guarantee efficient work and prevent damage to vehicle components. Your essential toolkit includes a 10mm socket with ratchet and extensions for accessing recessed headlight bolts, both flat blade and Phillips head screwdrivers for panel manipulation, and needle nose pliers for clip removal. A dedicated trim tool set prevents plastic panel damage during fender liner separation. For replacement components, you’ll need 9003-sized bulbs like Sylvania XtraVision or direct-fit TRQ assemblies. Essential safety precautions include wearing latex gloves to prevent oil transfer onto bulb surfaces, which causes premature failure. A socket driver provides reliable loosening and tightening of screws throughout the installation process. When selecting aftermarket bulbs, consider brightness, longevity, and color temperature to match your driving needs and preferences. Video tutorials demonstrating headlight assembly removal can help clarify minor differences in procedures across model years. Tool organization tips: arrange fasteners by removal sequence and keep plastic grommets, push clips, and self-tapping bolts separated for streamlined reassembly.
[Vehicle Fitment]: Compatible with Toyota Tundra 2014-2021, complete vehicle-specific fastener replacement kits for multiple parts of the vehicle.
FITMENT: Compatible with Toyota Tundra 2022, 2023, 2024, 2025. Precut pieces sized for factory headlights.
【Compatibility Check】Compatible with Compatible with 2007 2008 2009 2010 2011 2012 2013 Toyota Tundra Pickup,Please use Amazon's "Confirm Fitment" tool above or send us your vehicle's Year, Make, and Model to verify compatibility before purchasing.
Preparing Your Toyota Tundra for Work
With your tools and replacement components organized, you’ll now establish a safe working environment for headlight service. Begin safety preparation by turning off the engine completely and engaging the parking brake to guarantee vehicle stability on level, solid ground. Power down all electrical components before proceeding. Open the hood by pulling the cabin release lever, then locate and press the secondary latch upward beneath the hood’s front edge. Lift the hood fully and secure it with the prop rod, verifying it’s locked in position. Clear obstructions from the engine bay and position your work light to illuminate the headlight assembly. Protect the headlight housing from oxidation damage by applying UV protection after any restoration work. Adopt standard safety precautions by donning protective gloves and safety glasses before handling any components. Don protective gloves and safety glasses before handling components. Conduct a visual inspection of the headlight housing and electrical connectors to identify any damage or access obstacles. For the Tundra, larger components may need to be shifted to reach the headlight assembly.
Removing the Front Grille Assembly
Accessing the headlight assembly on most 2014–2021 Toyota Tundra models requires partial or complete removal of the front grille. Begin by removing four 10 mm bolts along the top edge, then release upper corner push-pins using a trim tool. If your truck has Toyota Safety Sense, remove the TSS cover and disconnect the crash sensor harness. Next, depress side clips and release lower push-pins securing the grille to bumper support structures. Lift and tilt the grille to unhook top mounting hooks, then slide it forward. Apply fastener organization techniques by grouping bolts and clips by location—top, sides, bottom—to simplify reassembly. Note grille alignment tips: transfer emblem washers and observe hook engagement angles to prevent stress on mounting points during reinstallation. While the bumper is removed, consider upgrading components such as fog lights or hidden light bars to maximize efficiency and minimize duplicate labor.

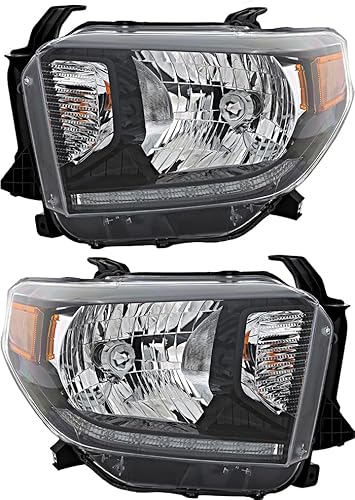

Gaining Access to the Headlight Housing
Once the grille is clear from the vehicle, you’ll need to address the fender liner panels and mounting hardware that secure the headlight assembly to the truck’s body. Begin by prying out push clips along the fender edge using a flat blade screwdriver or plastic trim tool. Pop the center of lock pins with a Phillips screwdriver, then extract the clips completely. Remove pop rivets from panels below the headlights using a small flat-head screwdriver. Separate the body clip near the grille by removing its 10mm bolt and Phillips screw. These access techniques expose the headlight housing’s three primary mounting bolts—positioned at the top, middle, and bottom locations. Use a 10mm socket with ratchet and extension to extract each bolt systematically, ensuring complete removal before proceeding. Handle all components carefully during this process to avoid damage to the delicate wiring harness connections and housing assembly.
10mm Toyota Head Bolt Wrench
Product Name: Motorcycle Light Socket. Suitable for BA15D bulbs
Ideal replacement - this headlight socket matches the fit and terminal count of the original equipment socket
Extracting the Old Headlight Bulb
After removing the mounting bolts, reach behind the headlight assembly to locate the bulb socket at the rear of the housing. Rotate the bulb counterclockwise until you feel the tabs release from their slots—this indicates proper bulb alignment for extraction. Pull the fixture straight out after the counterclockwise twist releases it. For tighter passenger side access, employ one-handed extraction techniques while wiggling the bulb to guarantee tabs clear the housing completely.
Once removed, disconnect the electrical connector by pressing the small release tab. Avoid touching the glass portion of the old bulb during handling. If space constraints impede removal, consider removing the battery on the driver side or the washer fluid reservoir on the passenger side. Before installation, test that the new bulb functions to confirm proper electrical connection before final reassembly. Verify you’re replacing with the correct 9003/H4 bulb type for compatibility.
Lights Dim Over Time, Replace In Pairs: Your lights are a pair, one is never turned on without the other. If one bulb burns out, the other isn't far behind. Replace your 9003 XtraVision Halogen bulbs in pairs for optimum performance.
【900% Upgrade】 Equipped with top automotive-grade chips, autoone upgraded h4 bulbs deliver an impressive brightness per pair at a cool 6500K. The super-focused pattern ensures a wider and longer lighting range, making the 9003/hb2/h4 bulb 9 times brighter thanstock bulbs
【12X Brighter & 60000 Lumens】Upgrade your night vision with advanced AUXITO H4 LED bulbs. Utilizing the latest LED chips, each set delivers a staggering 60,000 lumens of brightness—12 times brighter than stock halogen bulbs. This powerful illumination floods the road ahead, eliminates dark spots, and ensures you can see pedestrians, road signs, and animals from a much greater distance for maximum driving safety.
Installing the New Headlight Bulb
With the old bulb removed and the electrical connector accessible, preparation for the new bulb becomes the immediate priority. Wear gloves when handling the replacement—bulb longevity tips emphasize avoiding finger contact with glass surfaces, as oil residue degrades performance and lifespan. Verify the correct bulb type (H11 or 9003) for your Tundra model. Insert the narrow connector tab first, then the wider top tab, pressing until it clicks securely.
Align bulb tabs with headlight housing slots at the 2-3 o’clock position. Feed the bulb through, wiggling to center it properly. Rotate clockwise to the 4-5 o’clock position until locked. For clip-type assemblies, push the metal wire down to secure. Reinstall the rubber grommet for waterproofing. After installation, verify that headlight alignment is correct to ensure optimal visibility and compliance with traffic regulations. Consider exploring LED and HID conversion technologies to enhance your vehicle’s night visibility beyond standard bulb upgrades. Test both low and high beams, conducting a headlight brightness comparison to confirm proper installation and ideal illumination.
【900% Brighter - S1 Pro Bulbs】The SEALIGHT 9005 H11 bulbs combo feature 16pcs high-performance chips, delivering up to 8 times the brightness than stock bulbs. Upgrade your nighttime driving experience by replacing dim, narrow stock bulbs with SEALIGHT 9005/HB3 H11/H9/H8/H16 LED Bulbs Combo. Enjoy crystal-clear 6500K cool white light that cuts through the dark, giving you way better visibility for safer night drives
⭐【Super Bright H11 Bulbs】Our H11 headlight bulbs deliver over 1000LM brightness and a 3800K color temperature, ensuring optimal visibility in foggy and rainy conditions. Upgrade your automotive headlight bulbs for safer nighttime driving.
Fit for 99% of vehicles - SYJIIP Halogen headlamp are close to the wattage of the stock halogen headlamp bulb, which can reduce the occurrence of CANBUS problems, avoid erroneous and flickering. As long as your stock light bulb model is the same as ours, then SYJIIP's light bulb will be suitable for your car.
Reassembling the Headlight Components
Position the headlight assembly carefully to begin the reassembly process, ensuring proper alignment before securing any fasteners. Rest the unit on a towel to prevent lens scratching while lining up mounting holes. Install the three 10mm bolts—two on top, one on the side—using a 1/4 ratchet with socket. Maintain headlight alignment by verifying tabs seat properly before final tightening.
Reconnect all wiring harnesses and twist bulbs to lock them into position. Route DRL harness wires to the fuse box if equipped, securing connectors without dielectric grease. Handle all electrical connectors with care to avoid damage during the reconnection process. If headlights fail to illuminate after reassembly, check fuses before troubleshooting other components.
Complete clip reattachment by snapping plastic clips into trim pieces using a metal panel popper. Reinstall the trim panel with two front clips and fender bolts. Replace the grille with four top bolts and corner clips, then zip-tie excess wiring away from heat sources.
Securing the Grille and Final Touches
The grille serves as the final exterior component requiring installation following headlight reassembly. Position the grille in line with factory mounts, ensuring proper grille alignment with headlight and bumper edges. Engage the hooks beneath the headlights, then secure temporarily with one or two bolts to verify fitment. Install the four 10mm bolts along the top edge and snap the two plastic push-clips into their side positions. Tighten bolts to factory torque specifications without over-tightening.
Focus on wiring organization by routing the harness through grille support beams. Secure wires with zip ties in beam slots, bundling excess wiring near the driver side. Tuck the harness to prevent sagging. Place the removed grille on a soft blanket to prevent scratches during the installation process. Perform final visual checks by inspecting alignment from the front view, cleaning fingerprints, and testing grille stability with a gentle tug.
Testing Your New Headlights
Before reconnecting the battery, verify all electrical connections are secure and no tools remain in the engine bay. Test low beams, high beams, fog lights, and turn signals systematically. Confirm DRL harness installation functions properly if you’ve upgraded components. Verify bulb compatibility with your Tundra’s electrical system by checking voltage across relay coil terminals—approximately 14V indicates normal operation.
For headlight brightness verification, position your Tundra 25 feet from a wall in controlled conditions. LED upgrades like GTR Ultra 2 should demonstrate significant output increases compared to stock halogen bulbs. If components fail testing, inspect headlight circuit fuses with the switch activated. Use a volt meter to confirm electrical flow through the wiring harness. Replace malfunctioning bulbs immediately, handling new replacements with gloves to prevent oil contamination on the glass. After installation, proper headlight alignment ensures optimal performance and safety on the road.
